Zero order · crystal quartz
Zero Order Waveplate — 10 mm
Air-spaced laser-quality crystal quartz retarder with 8 mm clear aperture. Far less temperature sensitive than multiple-order plates.
$305 per waveplate
Catalog
Stock & build-to-print optics
Priced items are in stock and ship in 1–2 business days. Quote items are custom — send your drawing and we’ll respond within one business day.
372 optics
Zero order · crystal quartz

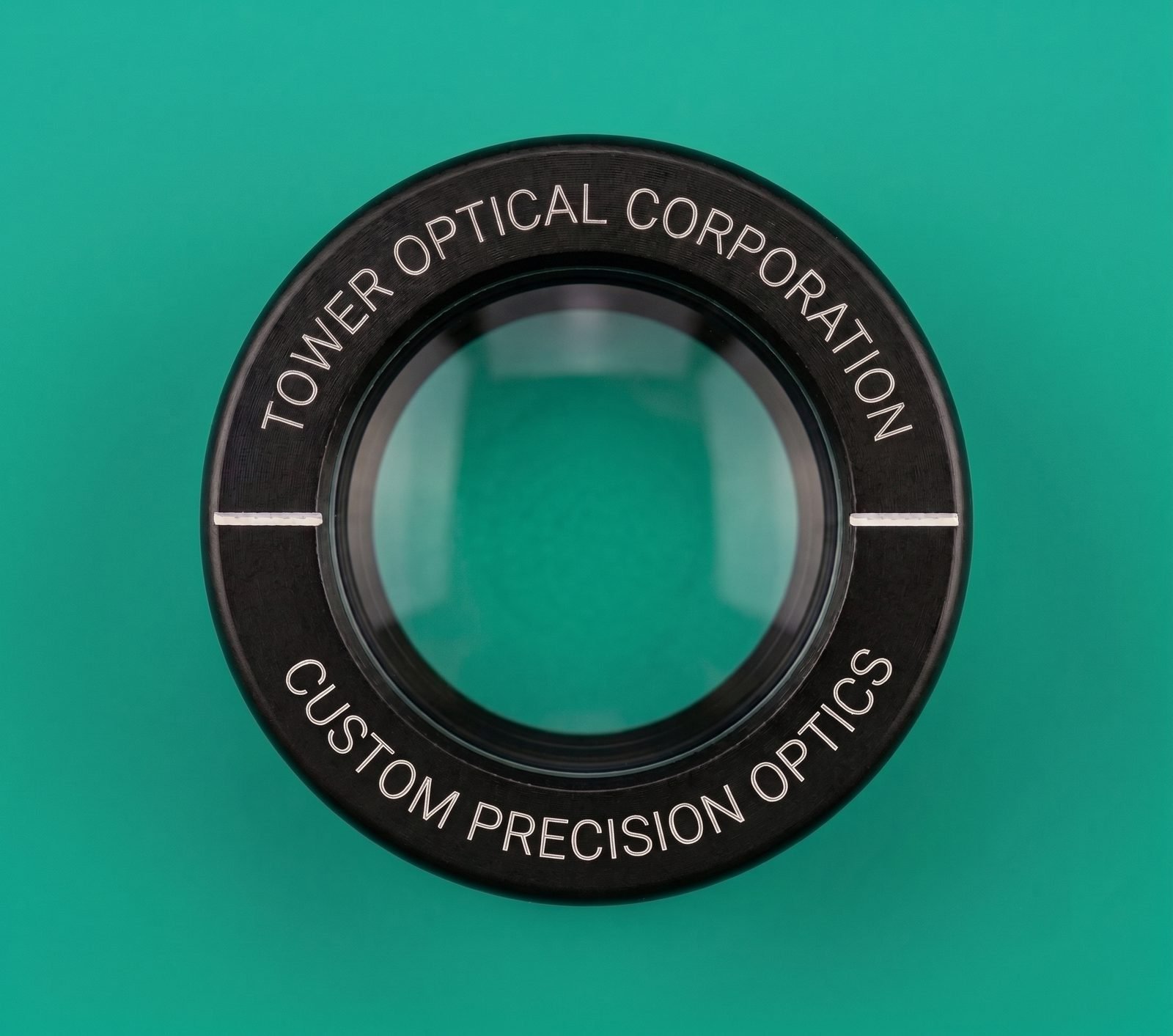

Zero Order Waveplate — 12.7 mm
10 mm clear aperture air-spaced zero-order retarder in laser-quality crystal quartz. Standard wavelengths 237–2020 nm.
$355 per waveplate
Zero order · crystal quartz
Zero Order Waveplate — 17.5 mm
Air-spaced zero-order retarder, 15 mm clear aperture, 237–2021 nm. Stock wavelengths and custom on request.
$365 per waveplate
HLD · new addition

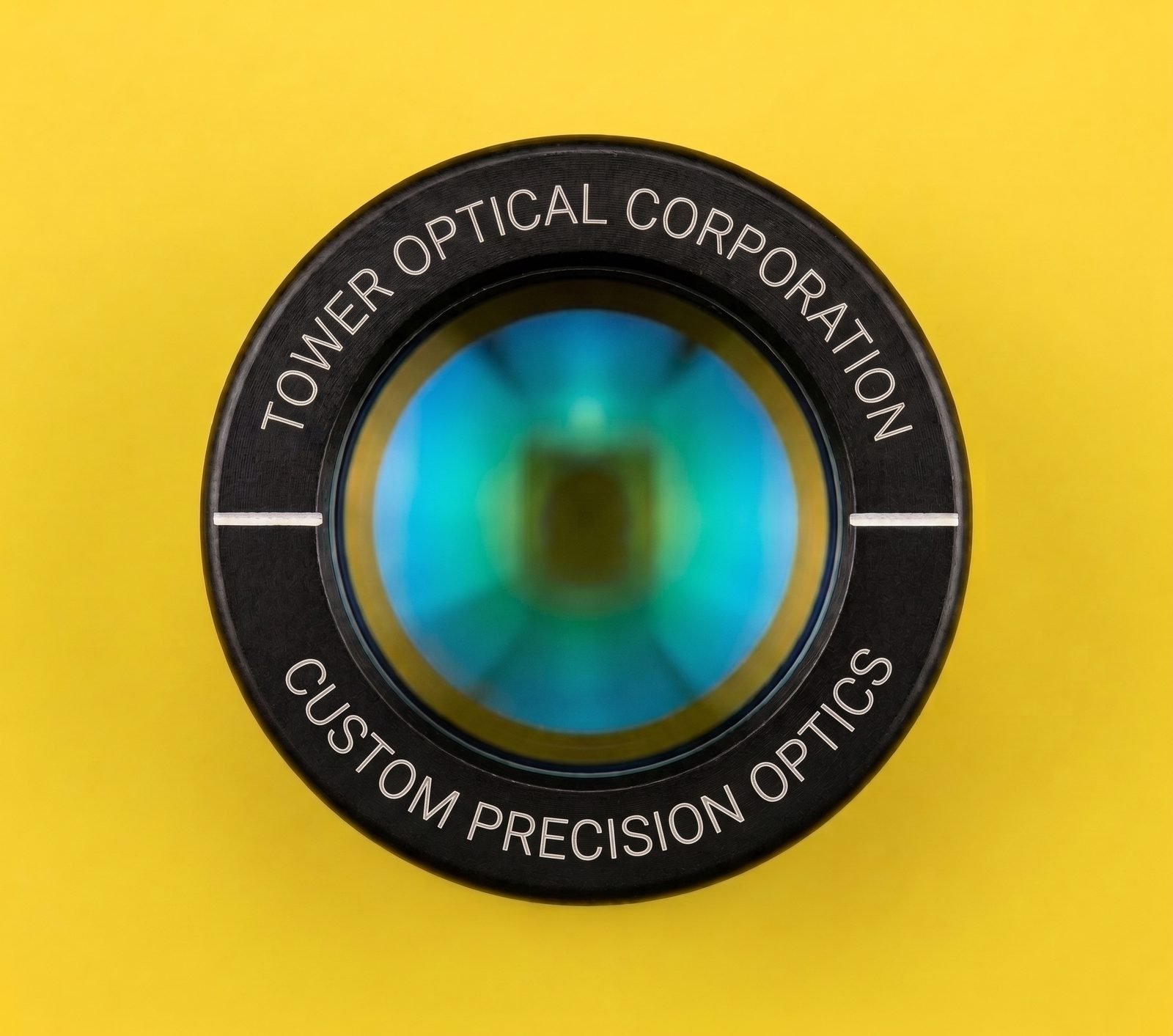

High Laser Damage Zero Order Waveplate — 17.5 mm
High Laser Damage zero-order retarder with HLD AR coating — 1 MW/cm² CW, 20 J/cm² @ 10 ns. New addition to the waveplate line.
$435 per waveplate · mounted $465
Zero order · crystal quartz
Zero Order Waveplate — 25.4 mm
23 mm clear aperture zero-order retarder. The workhorse size for imaging and laser systems.
$495 per waveplate
Zero order · large aperture
Zero Order Waveplate — 38.1 mm
34 mm clear aperture zero-order retarder for high-power and imaging applications.
$1,595 per waveplate
Zero order · large aperture
Zero Order Waveplate — 50.8 mm
46 mm clear aperture — our largest standard zero-order retarder.
$2,260 per waveplate
Super large · 3 inch
Super Large 3" Zero Order Waveplate — 76.2 mm
Air-spaced 3-inch zero-order retarder for large-beam, high-power lasers. Custom wavelengths 355–2021 nm.
$3,295 per waveplate · mounted $3,495
Super large · 4 inch

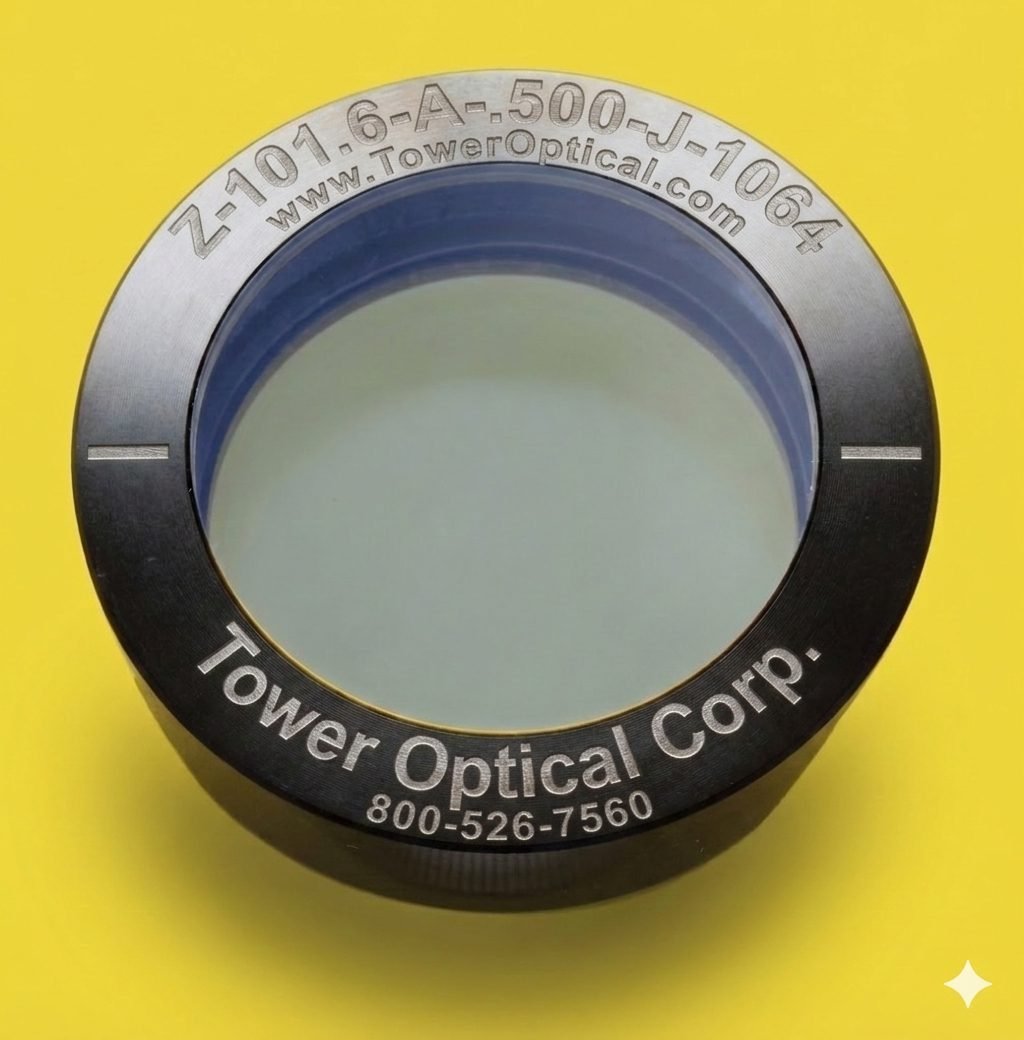

Super Large 4" Zero Order Waveplate — 101.6 mm
The largest zero-order retarder in the line — 4-inch air-spaced crystal quartz with a rugged 4.5" mounting ring.
Quote on request call for pricing
Multiple order · single plate

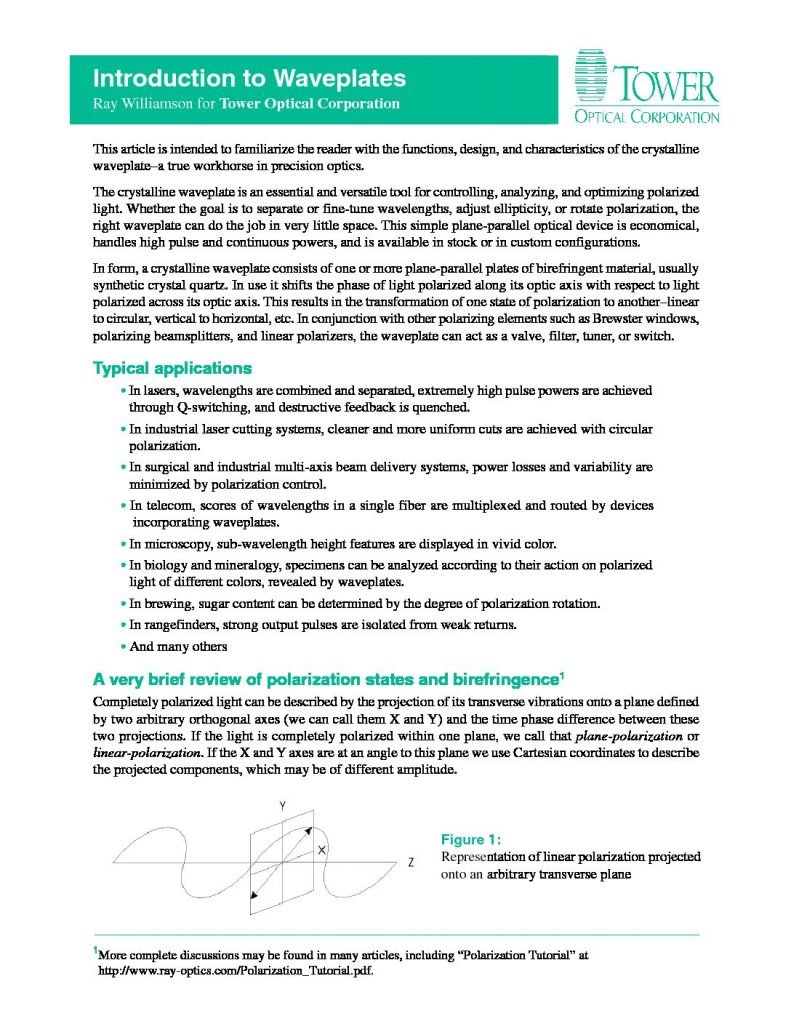

Multiple Order Waveplate — 17.5 mm
Single-plate laser-grade quartz retarder. More temperature sensitive than zero order — best for lab, monochromatic use.
$265 unmounted, from
Multiple order · single plate
Multiple Order Waveplate — 25.4 mm
1-inch single-plate laser-grade quartz retarder. AR-coated, ½ or ¼ wave, 237–2020 nm.
$350 per waveplate · mounted $370
Achromatic · quartz + MgF2
Achromatic Waveplate — Air Spaced, 12.7 mm
Retardation stays flat across hundreds of nm. The right choice for tunable or broad-spectrum sources.
$755 per waveplate
Achromatic · cemented
Achromatic Waveplate — Cemented, 25.4 mm
Larger cemented achromatic retarder with stable, wavelength-insensitive performance.
$845 per waveplate
Custom · any spec
Custom Waveplates (Build-to-Print)
Any wavelength 237–2021 nm, any size 5–101.6 mm, square or rectangular. We make custom versions of everything.
Quote on request quote on request
Polarizing · BK-7

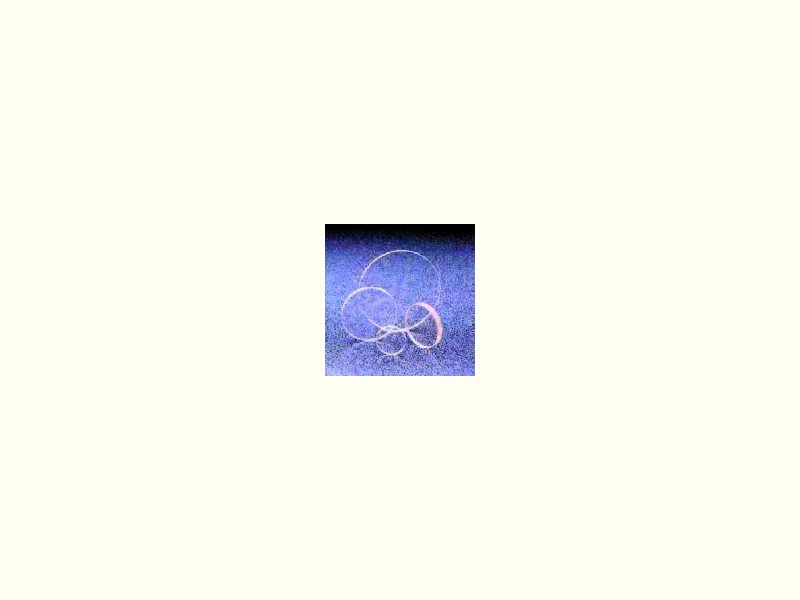

Polarizing Beamsplitter Cube
Complementary-prism cube that separates p- and s-polarized output beams. 3.2–50.8 mm, narrow or broad band.
$209 from, per cube
Non-polarizing · high power
Non-Polarizing Beamsplitter Plate
Split or recombine beams, including high-power lasers. 10–50.8 mm, BK-7 grade A.
$133 from, per plate
Plate · 50/50 ±5%
Beamsplitter Plate — 25.4 mm, 50/50
Low-absorption BK7 beamsplitter plate, 25.4 × 25.4 × 3 mm. Narrow-band (X) $78 · broad-band (Y) $83.
$78 narrow band $78 · broad band $83
λ/4 or better · BK7
Precision Optical Flat — BK7
Cost-effective fused/BK7 reference flats, single or double sided, 25–200 mm.
$75 from, per flat
λ/10–λ/20 · fused silica
Precision Optical Flat — Fused Silica
High-stability fused silica reference flats at λ/10 or λ/20, 25–200 mm, single or double sided.
$140 from, per flat
λ/20 · interferometer

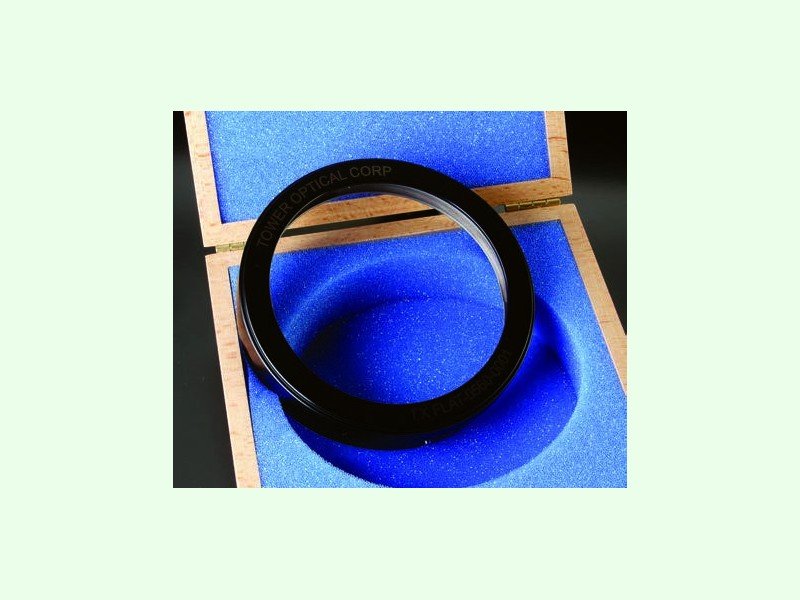

Transmission Flat — 4 in
Fused silica transmission flat in an anodized bayonet housing, 100 mm clear aperture. AR-coated one side.
$3,350 per unit, with case
λ/20 · interferometer
Transmission Flat — 6 in
153 mm clear aperture transmission flat for large optics, with 6 in bayonet mount and case.
$5,650 per unit, with case
Micro optics · 45-90-45

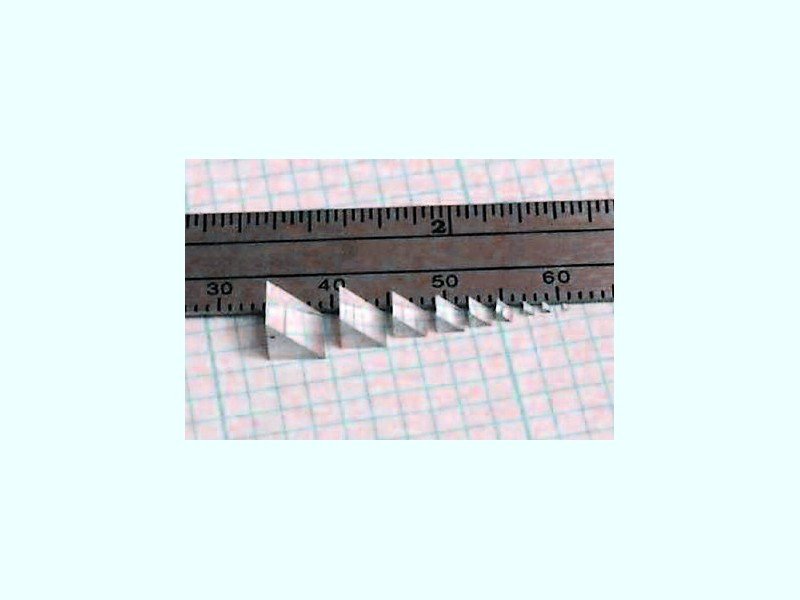

Micro Right Angle Prism — 2.0 mm
0.5–5.0 mm 45°-90°-45° micro prisms in NBK7 or H-K9L. Uncoated from $33 · enhanced-Al coated from $63.
$33 MPU-2.0 $33 · MPCH-2.0 $63 · quantity pricing
45-90-45 · BK7 or fused silica

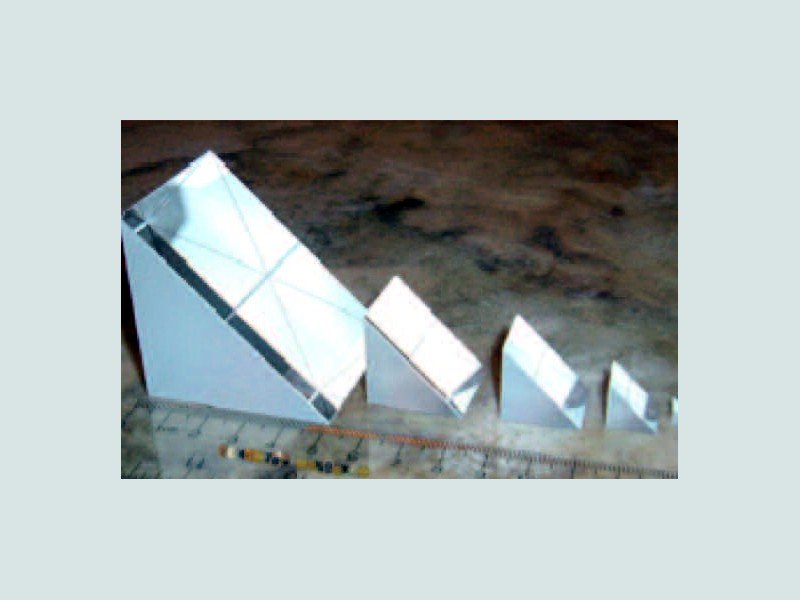

Large Right Angle Prism — 25 mm
High-quality 12.5–50 mm right angle prisms in BK7 or UV fused silica, uncoated. $25 to $480 by size.
$25 LPU-112 $25 · LPU-125 $49 · LPU-250 $480
Biomedical · narrow · broad

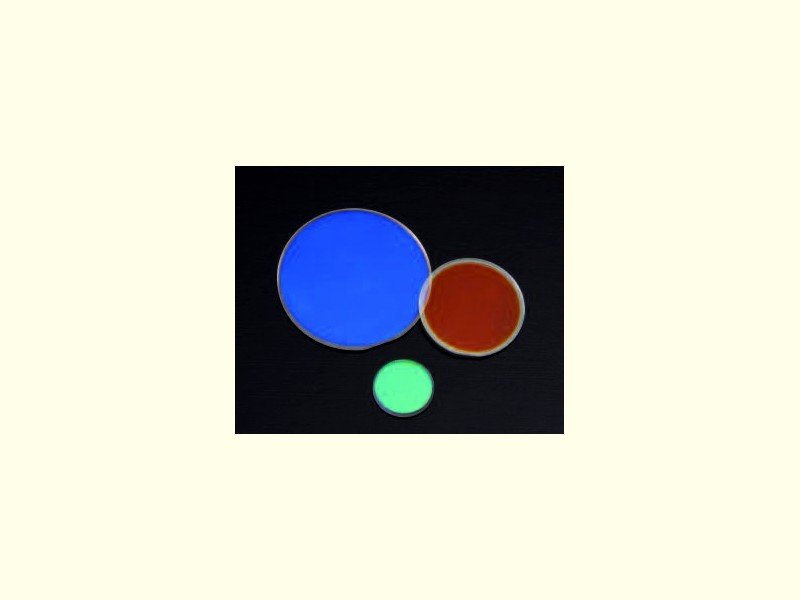

Custom Bandpass Filters
Ion-beam-sputtered bandpass, narrow-band, and broadband filters. 340–1570 nm, OD4+ blocking.
Quote on request quote on request
AR · HR · dichroic · IBS
Custom Optical Coatings
High-damage-threshold AR, reflective, beamsplitter, and dichroic coatings. 193 nm–10.6 µm, incl. IBS.
Quote on request quote on request
0.5 mm – 350 mm

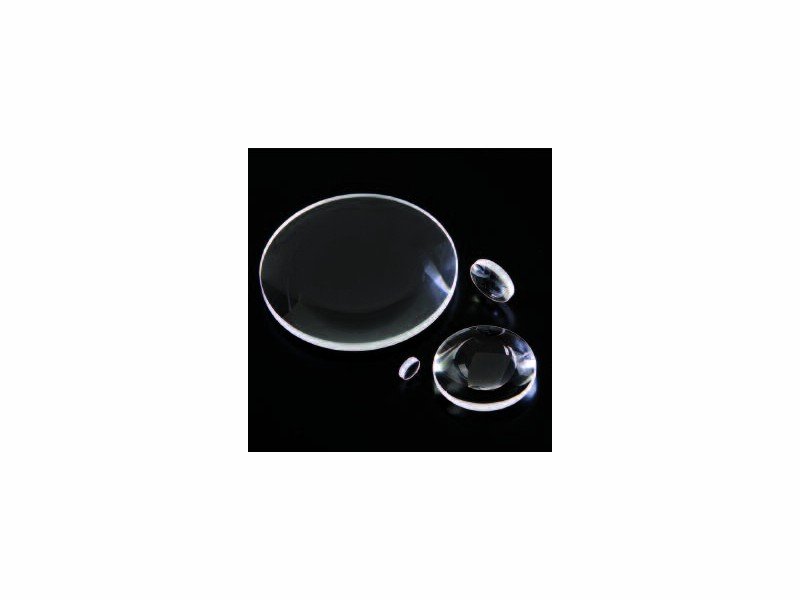

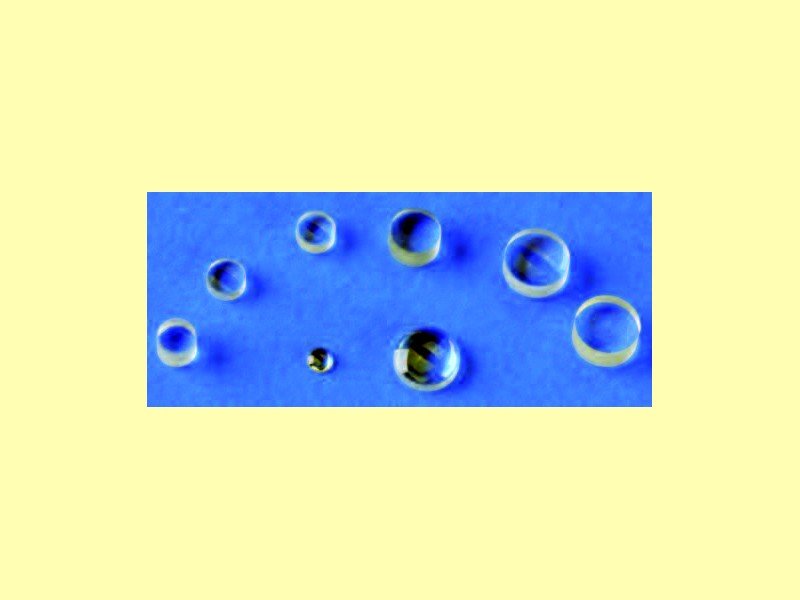

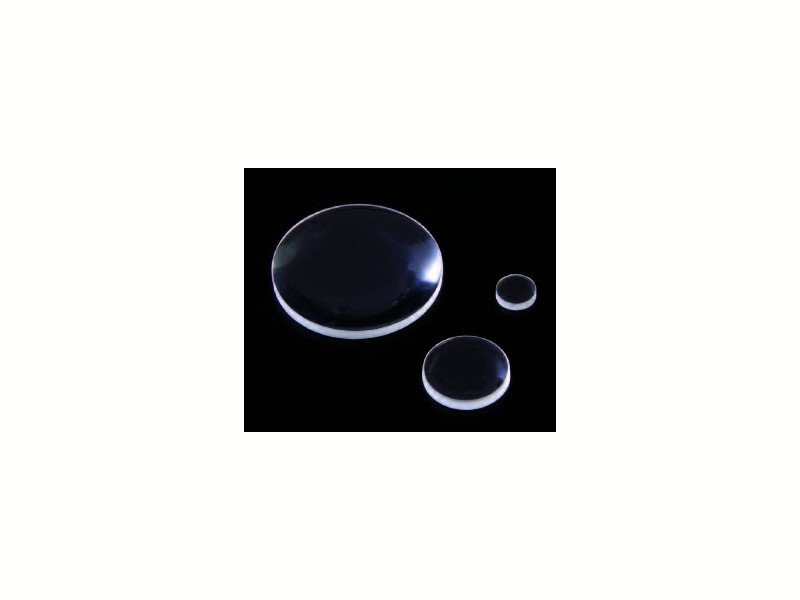

Custom Lenses & Micro-Lenses
Micro-lenses from 0.5 mm to standard 350 mm. Doublets, triplets, PC, BC, meniscus — 1/20 λ figure, 10/5 S&D.
Quote on request quote on request
0.5 mm – 800 mm

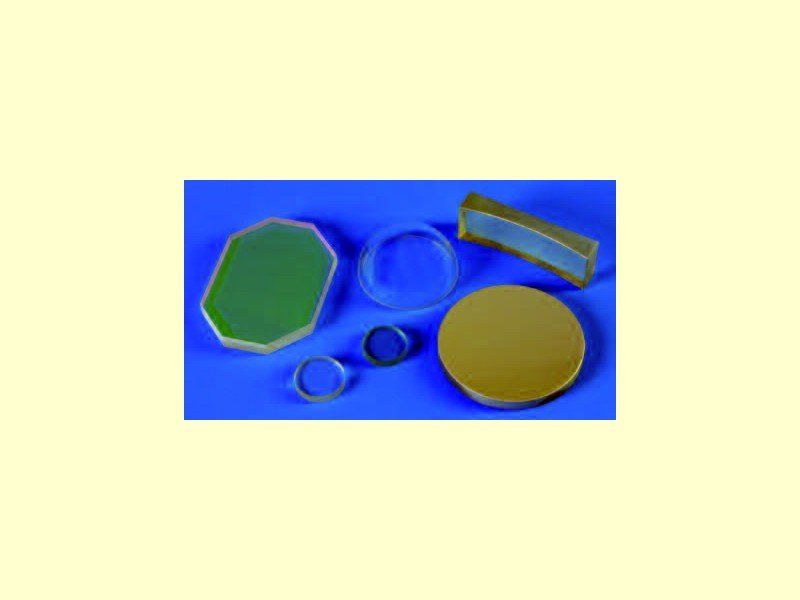

Windows & Mirrors (Laser Quality)
Laser-quality windows and flat mirrors up to 800 mm. Round, square, or custom shapes.
Quote on request quote on request
4 in → 6 in · interferometry

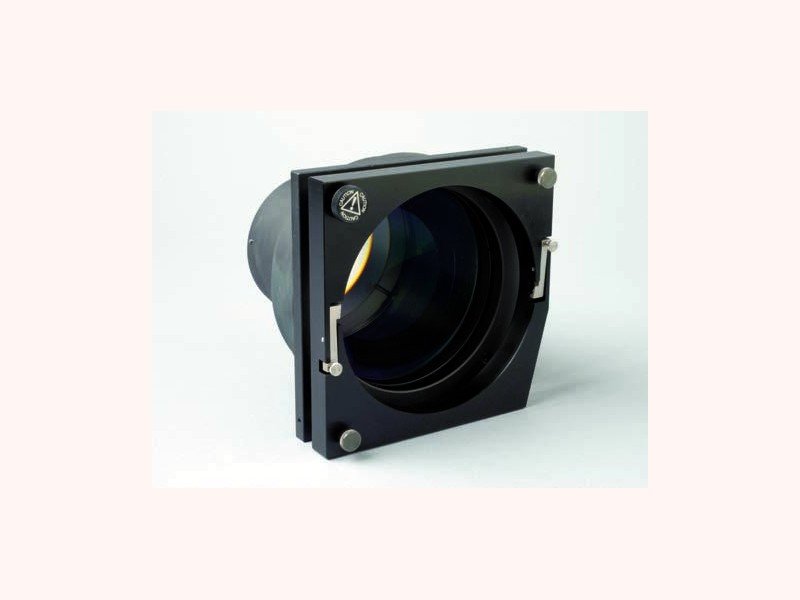

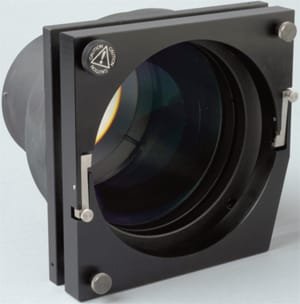

BeamEx 1000 — Beam Expander
Extend a 4 in Fizeau interferometer to measure 6 in optics. Bayonet mount, 2-axis tip/tilt, λ/3 wavefront.
$13,995 per unit
Multi-element · large optics
Optical Assemblies & Build-to-Print
Beam combiners, prism assemblies, collimators, scan optics, and large precision optics — designed, built, and tested in-house.
Quote on request quote on request
Mounting hardware · 0515 series

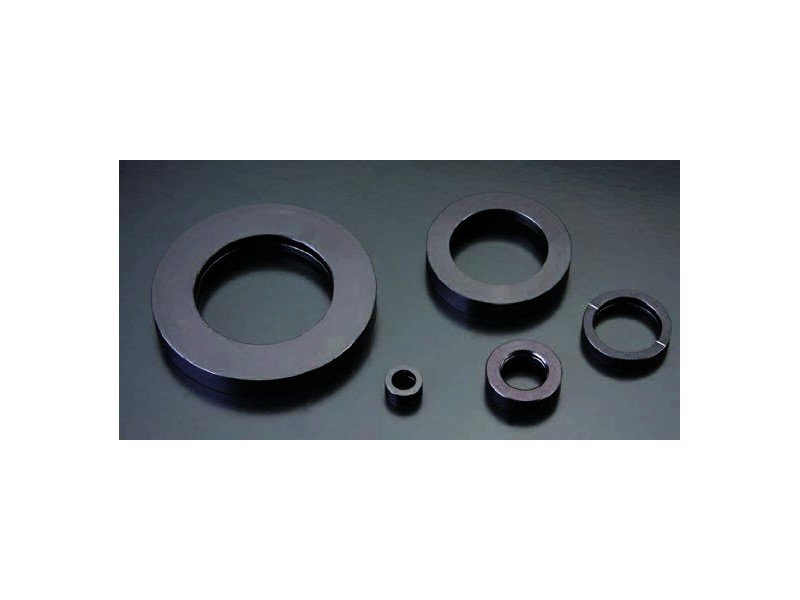

Optics Mounting Ring — Ø25.4 mm (for 17.5 mm optic)
Hard-coat black anodized mounting ring with slotted retaining ring and fine metric thread. Six sizes, with or without axis mark, $25–$65.
$25 per ring · $25–$65 by size
Waveplates · Cookbook p. 4
Zero Order (Z series) — Z-10-A-R-N-WL
Model Z-10-A-R-N-WL. Ø10 unmounted; Any standard; custom ±10–20 nm off-chart; Crystal quartz – laser quality; Air-spaced, stainless spacer.
$305 per unit · catalog list; confirm current pricing
Waveplates · Cookbook p. 4
Zero Order (Z series) — Z-10-A-R-A-WL
Model Z-10-A-R-A-WL. Ø10 in 12.7 mm ring; Any standard; custom ±10–20 nm off-chart; Crystal quartz – laser quality; Air-spaced, stainless spacer.
$355 per unit · catalog list; confirm current pricing
Waveplates · Cookbook p. 4
Zero Order (Z series) — Z-10-A-R-B-WL
Model Z-10-A-R-B-WL. Ø10 in 25.4 mm ring; Any standard; custom ±10–20 nm off-chart; Crystal quartz – laser quality; Air-spaced, stainless spacer.
$365 per unit · catalog list; confirm current pricing
Waveplates · Cookbook p. 5
Zero Order (Z series) — Z-12.7-A-R-N-WL
Model Z-12.7-A-R-N-WL. Ø12.7 unmounted; Any standard; custom ±10–20 nm off-chart; Crystal quartz – laser quality; Air-spaced, stainless spacer.
$355 per unit · catalog list; confirm current pricing
Waveplates · Cookbook p. 5
Zero Order (Z series) — Z-12.7-A-R-B-WL
Model Z-12.7-A-R-B-WL. Ø12.7 in 25.4 mm ring; Any standard; custom ±10–20 nm off-chart; Crystal quartz – laser quality; Air-spaced, stainless spacer.
$385 per unit · catalog list; confirm current pricing
Waveplates · Cookbook p. 6
Zero Order (Z series) — Z-17.5-A-R-N-WL
Model Z-17.5-A-R-N-WL. Ø17.5 unmounted; Any standard; custom ±10–20 nm off-chart; Crystal quartz – laser quality; Air-spaced, stainless spacer.
$365 per unit · catalog list; confirm current pricing
Waveplates · Cookbook p. 6
Zero Order (Z series) — Z-17.5-A-R-B-WL
Model Z-17.5-A-R-B-WL. Ø17.5 in 25.4 mm ring; Any standard; custom ±10–20 nm off-chart; Crystal quartz – laser quality; Air-spaced, stainless spacer.
$385 per unit · catalog list; confirm current pricing
Waveplates · Cookbook p. 7
Zero Order HLD (Z series -H) — Z-17.5-A-R-N-WL-H
Model Z-17.5-A-R-N-WL-H. Ø17.5 unmounted; 355, 408, 532, 800, 1030, 1064 (standard); custom available; Crystal quartz – laser quality; Air-spaced, stainless spacer.
$435 per unit · catalog list; confirm current pricing
Waveplates · Cookbook p. 7
Zero Order HLD (Z series -H) — Z-17.5-A-R-B-WL-H
Model Z-17.5-A-R-B-WL-H. Ø17.5 in 25.4 mm ring; 355, 408, 532, 800, 1030, 1064 (standard); custom available; Crystal quartz – laser quality; Air-spaced, stainless spacer.
$465 per unit · catalog list; confirm current pricing
Waveplates · Cookbook p. 8
Zero Order (Z series) — Z-25.4-A-R-N-WL
Model Z-25.4-A-R-N-WL. Ø25.4 unmounted; 266, 355, 408, 423, 488, 514.5, 532, 632.8, 650, 670, 780, 800, 830, 980, 1064, 1550 (standard); custom ±10–20 nm; Crystal quartz – laser quality; Air-spaced, stainless spacer.
$495 per unit · catalog list; confirm current pricing
Waveplates · Cookbook p. 8
Zero Order (Z series) — Z-25.4-A-R-C-WL
Model Z-25.4-A-R-C-WL. Ø25.4 in 30 mm ring; 266, 355, 408, 423, 488, 514.5, 532, 632.8, 650, 670, 780, 800, 830, 980, 1064, 1550 (standard); custom ±10–20 nm; Crystal quartz – laser quality; Air-spaced, stainless spacer.
$535 per unit · catalog list; confirm current pricing
Waveplates · Cookbook p. 9
Zero Order Large (Z series) — Z-38.1-A-R-N-WL
Model Z-38.1-A-R-N-WL. Ø38.1 unmounted; 355, 532, 632.8, 800, 1064, 1550 (standard); custom available; Crystal quartz – laser quality; Air-spaced, stainless spacer.
$1,595 per unit · catalog list; confirm current pricing
Waveplates · Cookbook p. 9
Zero Order Large (Z series) — Z-38.1-A-R-E-WL
Model Z-38.1-A-R-E-WL. Ø38.1 in 50.8 mm ring; 355, 532, 632.8, 800, 1064, 1550 (standard); custom available; Crystal quartz – laser quality; Air-spaced, stainless spacer.
$1,670 per unit · catalog list; confirm current pricing
Waveplates · Cookbook p. 9
Zero Order Large (Z series) — Z-50.8-A-R-N-WL
Model Z-50.8-A-R-N-WL. Ø50.8 unmounted; 355, 532, 632.8, 800, 1064, 1550 (standard); custom available; Crystal quartz – laser quality; Air-spaced, stainless spacer.
$2,260 per unit · catalog list; confirm current pricing
Waveplates · Cookbook p. 9
Zero Order Large (Z series) — Z-50.8-A-R-G-WL
Model Z-50.8-A-R-G-WL. Ø50.8 in 76.2 mm ring; 355, 532, 632.8, 800, 1064, 1550 (standard); custom available; Crystal quartz – laser quality; Air-spaced, stainless spacer.
$2,295 per unit · catalog list; confirm current pricing
Waveplates · Cookbook p. 10
Zero Order Super Large (Z series) — Z-76.2-A-R-N-WL
Model Z-76.2-A-R-N-WL. Ø76.2 unmounted; Custom: specify 355–2021 nm; Crystal quartz – laser quality; Air-spaced, stainless spacer.
$3,295 per unit · catalog list; confirm current pricing
Waveplates · Cookbook p. 10
Zero Order Super Large (Z series) — Z-76.2-A-R-H-WL
Model Z-76.2-A-R-H-WL. Ø76.2 in 4" (101.6 mm) ring; Custom: specify 355–2021 nm; Crystal quartz – laser quality; Air-spaced, stainless spacer.
$3,495 per unit · catalog list; confirm current pricing
Waveplates · Cookbook p. 11
Zero Order Super Large (Z series) — Z-101.6-A-Ret-J/U-Wavelength
Model Z-101.6-A-Ret-J/U-Wavelength. Ø101.6 unmounted or 4.5" ring; Custom: specify 355–2021 nm; Crystal quartz – laser quality; Air-spaced, stainless spacer.
Quote on request quote on request
Waveplates · Cookbook p. 12
Zero Order — Any Wavelength Program — (any Z-series P/N with chosen WL)
Model (any Z-series P/N with chosen WL). Ø10 / 12.7 / 17.5 / 25.4 / 38.1 / 50.8; Any wavelength 248–2020 nm (covers ~95% of requests); Crystal quartz – laser quality; Air-spaced; cemented & contacted also available.
Quote on request quote on request
Waveplates · Cookbook p. 13
Multiple Order (M series) — M-17.5-D-R-N-WL
Model M-17.5-D-R-N-WL. Ø17.5 unmounted; Per chart; dual-wavelength available; Crystal quartz – laser quality; Single plate (D).
$265 per unit · catalog list; confirm current pricing
Waveplates · Cookbook p. 13
Multiple Order (M series) — M-17.5-D-R-B-WL
Model M-17.5-D-R-B-WL. Ø17.5 in 25.4 mm ring; Per chart; dual-wavelength available; Crystal quartz – laser quality; Single plate (D).
$270 per unit · catalog list; confirm current pricing
Waveplates · Cookbook p. 13
Multiple Order (M series) — M-25.4-D-R-N-WL
Model M-25.4-D-R-N-WL. Ø25.4 unmounted; Per chart; dual-wavelength available; Crystal quartz – laser quality; Single plate (D).
$350 per unit · catalog list; confirm current pricing
Waveplates · Cookbook p. 13
Multiple Order (M series) — M-25.4-D-R-C-WL
Model M-25.4-D-R-C-WL. Ø25.4 in 30 mm ring; Per chart; dual-wavelength available; Crystal quartz – laser quality; Single plate (D).
$370 per unit · catalog list; confirm current pricing
Waveplates · Cookbook p. 13
Multiple Order (M series) — (other M-series sizes)
Model (other M-series sizes). Ø10 / 12.5 / 38.1 / 50.8; Per chart; dual-wavelength available; Crystal quartz – laser quality; Single plate (D).
Quote on request quote on request
Waveplates · Cookbook p. 14
Achromatic — Cemented (A series) — A-25.4-B-R-N-X
Model A-25.4-B-R-N-X. Ø25.4 unmounted; X: 1=465–610, 2=700–1000, 3=1200–1650, 4=610–850 nm; Crystal quartz + MgF2 (cemented); Cemented (B).
$810 per unit · catalog list; confirm current pricing
Waveplates · Cookbook p. 14
Achromatic — Cemented (A series) — A-25.4-B-R-C-X
Model A-25.4-B-R-C-X. Ø25.4 in 30 mm ring; X: 1=465–610, 2=700–1000, 3=1200–1650, 4=610–850 nm; Crystal quartz + MgF2 (cemented); Cemented (B).
$845 per unit · catalog list; confirm current pricing
Waveplates · Cookbook p. 15
Achromatic — Air Spaced (A series) — A-12.7-A-R-B-X
Model A-12.7-A-R-B-X. Ø12.7 in 25.4 mm ring; X: 1=465–610, 2=700–1000, 3=1200–1650, 4=610–850 nm; Crystal quartz + MgF2 (air spaced); Air gap (A).
$755 per unit · catalog list; confirm current pricing
Optical Flats · Cookbook p. 18

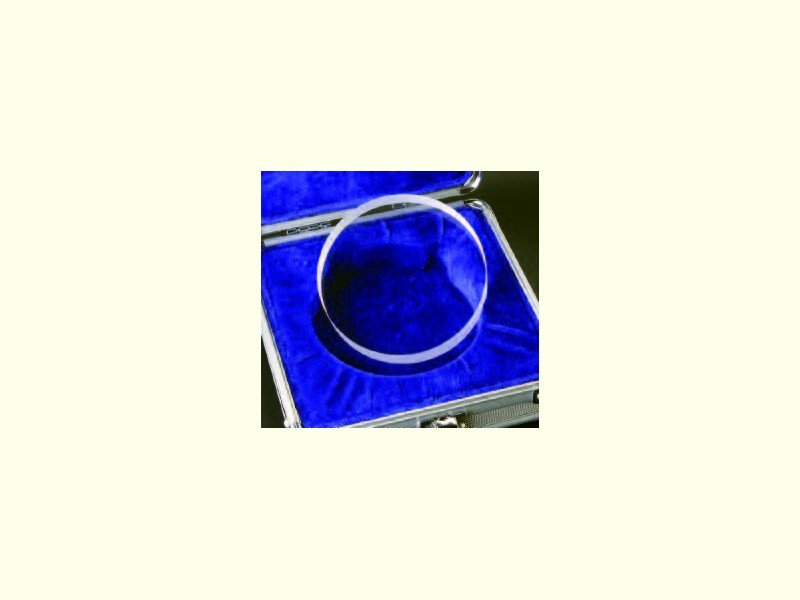

Precision Flats — Fused Silica λ/10 — 4542-0002
Model 4542-0002. Ø25 × 12.5; —; Fused silica; Single surface.
$140 per unit · catalog list; confirm current pricing
Optical Flats · Cookbook p. 18
Precision Flats — Fused Silica λ/10 — 4542-0004
Model 4542-0004. Ø25 × 12.5; —; Fused silica; Dual surface.
$240 per unit · catalog list; confirm current pricing
Optical Flats · Cookbook p. 18
Precision Flats — Fused Silica λ/10 — 4542-0006
Model 4542-0006. Ø50 × 15; —; Fused silica; Single surface.
$400 per unit · catalog list; confirm current pricing
Optical Flats · Cookbook p. 18
Precision Flats — Fused Silica λ/10 — 4542-0008
Model 4542-0008. Ø50 × 15; —; Fused silica; Dual surface.
$520 per unit · catalog list; confirm current pricing
Optical Flats · Cookbook p. 18
Precision Flats — Fused Silica λ/10 — 4542-0010
Model 4542-0010. Ø100 × 20; —; Fused silica; Single surface.
$680 per unit · catalog list; confirm current pricing
Optical Flats · Cookbook p. 18
Precision Flats — Fused Silica λ/10 — 4542-0012
Model 4542-0012. Ø100 × 20; —; Fused silica; Dual surface.
$860 per unit · catalog list; confirm current pricing
Optical Flats · Cookbook p. 18
Precision Flats — Fused Silica λ/10 — 4542-0014
Model 4542-0014. Ø150 × 25; —; Fused silica; Single surface.
$1,447 per unit · catalog list; confirm current pricing
Optical Flats · Cookbook p. 18
Precision Flats — Fused Silica λ/10 — 4542-0016
Model 4542-0016. Ø150 × 25; —; Fused silica; Dual surface.
$1,630 per unit · catalog list; confirm current pricing
Optical Flats · Cookbook p. 18
Precision Flats — Fused Silica λ/10 — 4542-0018
Model 4542-0018. Ø200 × 38; —; Fused silica; Single surface.
$2,872 per unit · catalog list; confirm current pricing
Optical Flats · Cookbook p. 18
Precision Flats — Fused Silica λ/10 — 4542-0020
Model 4542-0020. Ø200 × 38; —; Fused silica; Dual surface.
$3,052 per unit · catalog list; confirm current pricing
Optical Flats · Cookbook p. 18
Precision Flats — Fused Silica λ/20 — 4542-0022
Model 4542-0022. Ø25 × 12.5; —; Fused silica; Single surface.
Quote on request quote on request
Optical Flats · Cookbook p. 18
Precision Flats — Fused Silica λ/20 — 4542-0024
Model 4542-0024. Ø50 × 15; —; Fused silica; Single surface.
Quote on request quote on request
Optical Flats · Cookbook p. 18
Precision Flats — Fused Silica λ/20 — 4542-0026
Model 4542-0026. Ø100 × 20; —; Fused silica; Single surface.
Quote on request quote on request
Optical Flats · Cookbook p. 18
Precision Flats — BK7 λ/4 or better — 4542-0001
Model 4542-0001. Ø25 × 12.5; —; BK7; Single surface.
$75 per unit · catalog list; confirm current pricing
Optical Flats · Cookbook p. 18
Precision Flats — BK7 λ/4 or better — 4542-0003
Model 4542-0003. Ø25 × 12.5; —; BK7; Dual surface.
$83 per unit · catalog list; confirm current pricing
Optical Flats · Cookbook p. 18
Precision Flats — BK7 λ/4 or better — 4542-0005
Model 4542-0005. Ø50 × 15; —; BK7; Single surface.
$75 per unit · catalog list; confirm current pricing
Optical Flats · Cookbook p. 18
Precision Flats — BK7 λ/4 or better — 4542-0007
Model 4542-0007. Ø50 × 15; —; BK7; Dual surface.
$100 per unit · catalog list; confirm current pricing
Optical Flats · Cookbook p. 18
Precision Flats — BK7 λ/4 or better — 4542-0009
Model 4542-0009. Ø100 × 20; —; BK7; Single surface.
$215 per unit · catalog list; confirm current pricing
Optical Flats · Cookbook p. 18
Precision Flats — BK7 λ/4 or better — 4542-0011
Model 4542-0011. Ø100 × 20; —; BK7; Dual surface.
$300 per unit · catalog list; confirm current pricing
Optical Flats · Cookbook p. 18
Precision Flats — BK7 λ/4 or better — 4542-0013
Model 4542-0013. Ø150 × 25; —; BK7; Single surface.
$450 per unit · catalog list; confirm current pricing
Optical Flats · Cookbook p. 18
Precision Flats — BK7 λ/4 or better — 4542-0015
Model 4542-0015. Ø150 × 25; —; BK7; Dual surface.
$580 per unit · catalog list; confirm current pricing
Optical Flats · Cookbook p. 18
Precision Flats — BK7 λ/4 or better — 4542-0017
Model 4542-0017. Ø200 × 38; —; BK7; Single surface.
$800 per unit · catalog list; confirm current pricing
Optical Flats · Cookbook p. 18
Precision Flats — BK7 λ/4 or better — 4542-0019
Model 4542-0019. Ø200 × 38; —; BK7; Dual surface.
$1,200 per unit · catalog list; confirm current pricing
Optical Flats · Cookbook p. 18
Carrying Case for Flats — 1405-0008
Model 1405-0008. Fits flats up to Ø100; —; Wood/foam; Case.
$50 each · catalog list; confirm current pricing
Optical Flats · Cookbook p. 18
Carrying Case for Flats — 1405-0009
Model 1405-0009. Fits Ø150 & Ø200 flats; —; Wood/foam; Case.
$75 each · catalog list; confirm current pricing
Transmission Flats · Cookbook p. 19
TX Flat 4" — 0535-0005
Model 0535-0005. Ø114.2 window (CA 100) × 19.0; 632.8 nm AR surface; Fused silica window in Al 6061-T6 housing; Bayonet-mount assembly, black anodize.
$3,350 per unit · catalog list; confirm current pricing
Transmission Flats · Cookbook p. 19
TX Flat 6" — 0535-0011
Model 0535-0011. Ø161.5 window (CA 153) × 28.2; 632.8 nm AR surface; Fused silica window in Al 6061-T6 housing; Bayonet-mount assembly, black anodize.
$5,650 per unit · catalog list; confirm current pricing
Beam Expanders · Cookbook p. 20
BeamEx 1000 (4"→6") — 0535-0018
Model 0535-0018. Input Ø104 → Output Ø155; 632.8 nm; Precision optics + Al mechanics; Bayonet in/out; 2-axis tip & tilt for optional 6" TX flat.
$13,995 per unit · catalog list; confirm current pricing
Prisms · Cookbook p. 21
Micro Prism — Uncoated (MPU) — 4531-0001 / MPU-0.5
Model 4531-0001 / MPU-0.5. A=B=C 0.5; —; NBK7 or H-K9L; Right angle, uncoated.
$53 per unit (qty 1–9) · catalog list; confirm current pricing
Prisms · Cookbook p. 21
Micro Prism — Uncoated (MPU) — 4531-0002 / MPU-0.7
Model 4531-0002 / MPU-0.7. A=B=C 0.7; —; NBK7 or H-K9L; Right angle, uncoated.
$39 per unit (qty 1–9) · catalog list; confirm current pricing
Prisms · Cookbook p. 21
Micro Prism — Uncoated (MPU) — 4531-0003 / MPU-1.0
Model 4531-0003 / MPU-1.0. A=B=C 1.0; —; NBK7 or H-K9L; Right angle, uncoated.
$36 per unit (qty 1–9) · catalog list; confirm current pricing
Prisms · Cookbook p. 21
Micro Prism — Uncoated (MPU) — 4531-0004 / MPU-1.5
Model 4531-0004 / MPU-1.5. A=B=C 1.5; —; NBK7 or H-K9L; Right angle, uncoated.
$36 per unit (qty 1–9) · catalog list; confirm current pricing
Prisms · Cookbook p. 21
Micro Prism — Uncoated (MPU) — 4531-0005 / MPU-2.0
Model 4531-0005 / MPU-2.0. A=B=C 2.0; —; NBK7 or H-K9L; Right angle, uncoated.
$33 per unit (qty 1–9) · catalog list; confirm current pricing
Prisms · Cookbook p. 21
Micro Prism — Uncoated (MPU) — 4531-0006 / MPU-2.5
Model 4531-0006 / MPU-2.5. A=B=C 2.5; —; NBK7 or H-K9L; Right angle, uncoated.
$33 per unit (qty 1–9) · catalog list; confirm current pricing
Prisms · Cookbook p. 21
Micro Prism — Uncoated (MPU) — 4531-0007 / MPU-3.0
Model 4531-0007 / MPU-3.0. A=B=C 3.0; —; NBK7 or H-K9L; Right angle, uncoated.
$30 per unit (qty 1–9) · catalog list; confirm current pricing
Prisms · Cookbook p. 21
Micro Prism — Uncoated (MPU) — 4531-0008 / MPU-4.0
Model 4531-0008 / MPU-4.0. A=B=C 4.0; —; NBK7 or H-K9L; Right angle, uncoated.
$30 per unit (qty 1–9) · catalog list; confirm current pricing
Prisms · Cookbook p. 21
Micro Prism — Uncoated (MPU) — 4531-0009 / MPU-5.0
Model 4531-0009 / MPU-5.0. A=B=C 5.0; —; NBK7 or H-K9L; Right angle, uncoated.
$29 per unit (qty 1–9) · catalog list; confirm current pricing
Prisms · Cookbook p. 21
Micro Prism — Coated (MPCH) — 4531-0020 / MPCH-0.5
Model 4531-0020 / MPCH-0.5. A=B=C 0.5; —; NBK7 or H-K9L; Right angle, enhanced Al on hypotenuse.
$69 per unit (qty 1–9) · catalog list; confirm current pricing
Prisms · Cookbook p. 21
Micro Prism — Coated (MPCH) — 4531-0021 / MPCH-0.7
Model 4531-0021 / MPCH-0.7. A=B=C 0.7; —; NBK7 or H-K9L; Right angle, enhanced Al on hypotenuse.
$69 per unit (qty 1–9) · catalog list; confirm current pricing
Prisms · Cookbook p. 21
Micro Prism — Coated (MPCH) — 4531-0022 / MPCH-1.0
Model 4531-0022 / MPCH-1.0. A=B=C 1.0; —; NBK7 or H-K9L; Right angle, enhanced Al on hypotenuse.
$63 per unit (qty 1–9) · catalog list; confirm current pricing
Prisms · Cookbook p. 21
Micro Prism — Coated (MPCH) — 4531-0023 / MPCH-1.5
Model 4531-0023 / MPCH-1.5. A=B=C 1.5; —; NBK7 or H-K9L; Right angle, enhanced Al on hypotenuse.
$63 per unit (qty 1–9) · catalog list; confirm current pricing
Prisms · Cookbook p. 21
Micro Prism — Coated (MPCH) — 4531-0024 / MPCH-2.0
Model 4531-0024 / MPCH-2.0. A=B=C 2.0; —; NBK7 or H-K9L; Right angle, enhanced Al on hypotenuse.
$63 per unit (qty 1–9) · catalog list; confirm current pricing
Prisms · Cookbook p. 21
Micro Prism — Coated (MPCH) — 4531-0025 / MPCH-2.5
Model 4531-0025 / MPCH-2.5. A=B=C 2.5; —; NBK7 or H-K9L; Right angle, enhanced Al on hypotenuse.
$63 per unit (qty 1–9) · catalog list; confirm current pricing
Prisms · Cookbook p. 21
Micro Prism — Coated (MPCH) — 4531-0026 / MPCH-3.0
Model 4531-0026 / MPCH-3.0. A=B=C 3.0; —; NBK7 or H-K9L; Right angle, enhanced Al on hypotenuse.
$60 per unit (qty 1–9) · catalog list; confirm current pricing
Prisms · Cookbook p. 21
Micro Prism — Coated (MPCH) — 4531-0028 / MPCH-4.0
Model 4531-0028 / MPCH-4.0. A=B=C 4.0; —; NBK7 or H-K9L; Right angle, enhanced Al on hypotenuse.
$60 per unit (qty 1–9) · catalog list; confirm current pricing
Prisms · Cookbook p. 21
Micro Prism — Coated (MPCH) — 4531-0029 / MPCH-5.0
Model 4531-0029 / MPCH-5.0. A=B=C 5.0; —; NBK7 or H-K9L; Right angle, enhanced Al on hypotenuse.
$60 per unit (qty 1–9) · catalog list; confirm current pricing
Prisms · Cookbook p. 22
Large Right Angle — BK7 (LPU) — 4531-0010 / LPU-112
Model 4531-0010 / LPU-112. A=B=C 12.5; —; BK7 grade A; Right angle, uncoated.
$25 each · catalog list; confirm current pricing
Prisms · Cookbook p. 22
Large Right Angle — BK7 (LPU) — 4531-0011 / LPU-115
Model 4531-0011 / LPU-115. A=B=C 15.0; —; BK7 grade A; Right angle, uncoated.
$28 each · catalog list; confirm current pricing
Prisms · Cookbook p. 22
Large Right Angle — BK7 (LPU) — 4531-0012 / LPU-120
Model 4531-0012 / LPU-120. A=B=C 20.0; —; BK7 grade A; Right angle, uncoated.
$41 each · catalog list; confirm current pricing
Prisms · Cookbook p. 22
Large Right Angle — BK7 (LPU) — 4531-0013 / LPU-125
Model 4531-0013 / LPU-125. A=B=C 25.0; —; BK7 grade A; Right angle, uncoated.
$49 each · catalog list; confirm current pricing
Prisms · Cookbook p. 22
Large Right Angle — BK7 (LPU) — 4531-0014 / LPU-150
Model 4531-0014 / LPU-150. A=B=C 50.0; —; BK7 grade A; Right angle, uncoated.
$120 each · catalog list; confirm current pricing
Prisms · Cookbook p. 22
Large Right Angle — Fused Silica (LPU) — 4531-0015 / LPU-212
Model 4531-0015 / LPU-212. A=B=C 12.5; —; UV fused silica; Right angle, uncoated.
$98 each · catalog list; confirm current pricing
Prisms · Cookbook p. 22
Large Right Angle — Fused Silica (LPU) — 4531-0016 / LPU-215
Model 4531-0016 / LPU-215. A=B=C 15.0; —; UV fused silica; Right angle, uncoated.
$108 each · catalog list; confirm current pricing
Prisms · Cookbook p. 22
Large Right Angle — Fused Silica (LPU) — 4531-0017 / LPU-220
Model 4531-0017 / LPU-220. A=B=C 20.0; —; UV fused silica; Right angle, uncoated.
$130 each · catalog list; confirm current pricing
Prisms · Cookbook p. 22
Large Right Angle — Fused Silica (LPU) — 4531-0018 / LPU-225
Model 4531-0018 / LPU-225. A=B=C 25.0; —; UV fused silica; Right angle, uncoated.
$246 each · catalog list; confirm current pricing
Prisms · Cookbook p. 22
Large Right Angle — Fused Silica (LPU) — 4531-0019 / LPU-250
Model 4531-0019 / LPU-250. A=B=C 50.0; —; UV fused silica; Right angle, uncoated.
$480 each · catalog list; confirm current pricing
Prisms · Cookbook p. 23
Custom Prisms (all types)
Model Custom / quote on request. Ø0.5–100 mm; —; BK7 grade A or UV fused silica; other materials available; Standard / High / Laser grade.
Quote on request quote on request
Beamsplitters · Cookbook p. 24
Polarization Cube — Narrow Band (BSPN) — BSPN1-5-X
Model BSPN1-5-X. 5 × 5 × 5; X: 488, 514, 633, 780, 850, 1064, 1300, 1550 nm; BK7 grade A; Two complementary prisms (cube).
Quote on request quote on request
Beamsplitters · Cookbook p. 24
Polarization Cube — Narrow Band (BSPN) — BSPN1-10-X
Model BSPN1-10-X. 10 × 10 × 10; X: 488, 514, 633, 780, 850, 1064, 1300, 1550 nm; BK7 grade A; Two complementary prisms (cube).
Quote on request quote on request
Beamsplitters · Cookbook p. 24
Polarization Cube — Narrow Band (BSPN) — BSPN1-15-X
Model BSPN1-15-X. 15 × 15 × 15; X: 488, 514, 633, 780, 850, 1064, 1300, 1550 nm; BK7 grade A; Two complementary prisms (cube).
Quote on request quote on request
Beamsplitters · Cookbook p. 24
Polarization Cube — Narrow Band (BSPN) — BSPN1-20-X
Model BSPN1-20-X. 20 × 20 × 20; X: 488, 514, 633, 780, 850, 1064, 1300, 1550 nm; BK7 grade A; Two complementary prisms (cube).
Quote on request quote on request
Beamsplitters · Cookbook p. 24
Polarization Cube — Broad Band (BSPB) — BSPB1-10-Y
Model BSPB1-10-Y. 10 × 10 × 10; Y: 1=450–680, 2=650–850, 3=900–1200, 4=1200–1550 nm; BK7 grade A; Two complementary prisms (cube).
Quote on request quote on request
Beamsplitters · Cookbook p. 24
Polarization Cube — Broad Band (BSPB) — BSPB1-15-Y
Model BSPB1-15-Y. 15 × 15 × 15; Y: 1=450–680, 2=650–850, 3=900–1200, 4=1200–1550 nm; BK7 grade A; Two complementary prisms (cube).
Quote on request quote on request
Beamsplitters · Cookbook p. 24
Polarization Cube — Broad Band (BSPB) — BSPB1-20-Y
Model BSPB1-20-Y. 20 × 20 × 20; Y: 1=450–680, 2=650–850, 3=900–1200, 4=1200–1550 nm; BK7 grade A; Two complementary prisms (cube).
Quote on request quote on request
Beamsplitters · Cookbook p. 24
BS Plate — Narrow Band, Square (BSNN) — BSNN1-12.7S-X
Model BSNN1-12.7S-X. Ø12.7 × 3; X: 488, 514, 633, 780, 850, 1064, 1300, 1550 nm; BK7 grade A; Plate, 45° incidence.
$56 each (fixed store price) · catalog list; confirm current pricing
Beamsplitters · Cookbook p. 24
BS Plate — Narrow Band, Square (BSNN) — BSNN1-25.4S-X
Model BSNN1-25.4S-X. Ø25.4 × 3; X: 488, 514, 633, 780, 850, 1064, 1300, 1550 nm; BK7 grade A; Plate, 45° incidence.
$78 each (fixed store price) · catalog list; confirm current pricing
Beamsplitters · Cookbook p. 24
BS Plate — Narrow Band, Round (BSNN) — BSNN1-25.4R-X
Model BSNN1-25.4R-X. Ø25.4 × 3; X: 488, 514, 633, 780, 850, 1064, 1300, 1550 nm; BK7 grade A; Plate, round, 45° incidence.
$78 each (fixed store price) · catalog list; confirm current pricing
Beamsplitters · Cookbook p. 24
BS Plate — Narrow Band, Square (BSNN) — BSNN1-50.8S-X
Model BSNN1-50.8S-X. Ø50.8 × 3; X: 488, 514, 633, 780, 850, 1064, 1300, 1550 nm; BK7 grade A; Plate, 45° incidence.
$129 each (fixed store price) · catalog list; confirm current pricing
Beamsplitters · Cookbook p. 24
BS Plate — Broad Band, Square (BSNB) — BSNB1-12.7S-Y
Model BSNB1-12.7S-Y. Ø12.7 × 3; Y: 1=450–680, 2=650–850, 3=900–1200, 4=1200–1550 nm; BK7 grade A; Plate, 45° incidence.
$67 each (fixed store price) · catalog list; confirm current pricing
Beamsplitters · Cookbook p. 24
BS Plate — Broad Band, Square (BSNB) — BSNB1-25.4S-Y
Model BSNB1-25.4S-Y. Ø25.4 × 3; Y: 1=450–680, 2=650–850, 3=900–1200, 4=1200–1550 nm; BK7 grade A; Plate, 45° incidence.
$83 each (fixed store price) · catalog list; confirm current pricing
Beamsplitters · Cookbook p. 24
BS Plate — Broad Band, Round (BSNB) — BSNB1-25.4R-Y
Model BSNB1-25.4R-Y. Ø25.4 × 3; Y: 1=450–680, 2=650–850, 3=900–1200, 4=1200–1550 nm; BK7 grade A; Plate, round, 45° incidence.
$83 each (fixed store price) · catalog list; confirm current pricing
Beamsplitters · Cookbook p. 24
BS Plate — Broad Band, Square (BSNB) — BSNB1-50.8S-Y
Model BSNB1-50.8S-Y. Ø50.8 × 3; Y: 1=450–680, 2=650–850, 3=900–1200, 4=1200–1550 nm; BK7 grade A; Plate, 45° incidence.
$133 each (fixed store price) · catalog list; confirm current pricing
Filters & Coatings · Cookbook p. 25
Biomedical Bandpass Filter (custom)
Model Custom / quote on request. As required; 340–766 nm CWL; Dielectric, IBS available; Ion-beam sputtered or volume methods.
Quote on request quote on request
Filters & Coatings · Cookbook p. 25
Narrow Bandpass Filter (custom)
Model Custom / quote on request. As required; 340–1570 nm CWL; Dielectric, IBS available; Ion-beam sputtered or volume methods.
Quote on request quote on request
Filters & Coatings · Cookbook p. 25
Broad Bandpass Filter (custom)
Model Custom / quote on request. As required; 340–1570 nm CWL; Dielectric, IBS available; Ion-beam sputtered or volume methods.
Quote on request quote on request
Filters & Coatings · Cookbook p. 25
Short Pass / Long Pass Filters (custom)
Model Custom / quote on request. As required; Per application; Dielectric, IBS available; Ion-beam sputtered or volume methods.
Quote on request quote on request
Filters & Coatings · Cookbook p. 25
Coating Services (AR/HR/BS/Polarizer/Metallic)
Model Custom / quote on request. As required; 193 nm – 3 µm standard; to 10.6 µm per capability; Dielectric & metallic; Thermal evaporation or IBS ion-beam sputtering.
Quote on request quote on request
Mirrors · Cookbook p. 26
Cold Mirror, AOI 0° (MC) — MC0-25.4
Model MC0-25.4. Ø25.4 × 3.3; Tave>85% @750–1000 nm; rave>90% @400–700 nm; Borosilicate type glass; First-surface dielectric mirror.
Quote on request quote on request
Mirrors · Cookbook p. 26
Cold Mirror, AOI 0° (MC) — MC0-50.8
Model MC0-50.8. Ø50.8 × 3.3; Tave>85% @750–1000 nm; rave>90% @400–700 nm; Borosilicate type glass; First-surface dielectric mirror.
Quote on request quote on request
Mirrors · Cookbook p. 26
Cold Mirror, AOI 45° (MC) — MC45-25.4
Model MC45-25.4. Ø25.4 × 3.3; Tave>85% @750–1000 nm; rave>90% @400–700 nm; Borosilicate type glass; First-surface dielectric mirror.
Quote on request quote on request
Mirrors · Cookbook p. 26
Cold Mirror, AOI 45° (MC) — MC45-50.8
Model MC45-50.8. Ø50.8 × 3.3; Tave>85% @750–1000 nm; rave>90% @400–700 nm; Borosilicate type glass; First-surface dielectric mirror.
Quote on request quote on request
Mirrors · Cookbook p. 26
Hot Mirror, AOI 0° (MH) — MH0-25.4
Model MH0-25.4. Ø25.4 × 3.3; Tave>85% @425–700 nm; Rave>90% @750–1050 nm; Borosilicate type glass (high temp); First-surface dielectric mirror.
Quote on request quote on request
Mirrors · Cookbook p. 26
Hot Mirror, AOI 0° (MH) — MH0-50.8
Model MH0-50.8. Ø50.8 × 3.3; Tave>85% @425–700 nm; Rave>90% @750–1050 nm; Borosilicate type glass (high temp); First-surface dielectric mirror.
Quote on request quote on request
Mirrors · Cookbook p. 26
Hot Mirror, AOI 45° (MH) — MH45-25.4
Model MH45-25.4. Ø25.4 × 3.3; Tave>85% @425–700 nm; Rave>90% @750–1050 nm; Borosilicate type glass (high temp); First-surface dielectric mirror.
Quote on request quote on request
Mirrors · Cookbook p. 26
Hot Mirror, AOI 45° (MH) — MH45-50.8
Model MH45-50.8. Ø50.8 × 3.3; Tave>85% @425–700 nm; Rave>90% @750–1050 nm; Borosilicate type glass (high temp); First-surface dielectric mirror.
Quote on request quote on request
Windows · Cookbook p. 27
Window — BK7 Standard (WB11) — WB11-005
Model WB11-005. Ø5 × 2; UV–NIR per BK7 transmission; BK7 grade A; Plano window.
Quote on request quote on request
Windows · Cookbook p. 27
Window — BK7 Standard (WB11) — WB11-010
Model WB11-010. Ø10 × 2; UV–NIR per BK7 transmission; BK7 grade A; Plano window.
Quote on request quote on request
Windows · Cookbook p. 27
Window — BK7 Standard (WB11) — WB11-012
Model WB11-012. Ø12.5 × 2; UV–NIR per BK7 transmission; BK7 grade A; Plano window.
Quote on request quote on request
Windows · Cookbook p. 27
Window — BK7 Standard (WB11) — WB11-020
Model WB11-020. Ø20 × 2; UV–NIR per BK7 transmission; BK7 grade A; Plano window.
Quote on request quote on request
Windows · Cookbook p. 27
Window — BK7 Standard (WB11) — WB11-025
Model WB11-025. Ø25 × 2; UV–NIR per BK7 transmission; BK7 grade A; Plano window.
Quote on request quote on request
Windows · Cookbook p. 27
Window — BK7 Standard (WB11) — WB11-038
Model WB11-038. Ø38 × 4; UV–NIR per BK7 transmission; BK7 grade A; Plano window.
Quote on request quote on request
Windows · Cookbook p. 27
Window — BK7 Standard (WB11) — WB11-050
Model WB11-050. Ø50 × 4; UV–NIR per BK7 transmission; BK7 grade A; Plano window.
Quote on request quote on request
Windows · Cookbook p. 27
Window — BK7 High Grade (WB12) — WB12-005
Model WB12-005. Ø5 × 2; UV–NIR per BK7 transmission; BK7 grade A; Plano window.
Quote on request quote on request
Windows · Cookbook p. 27
Window — BK7 High Grade (WB12) — WB12-010
Model WB12-010. Ø10 × 2; UV–NIR per BK7 transmission; BK7 grade A; Plano window.
Quote on request quote on request
Windows · Cookbook p. 27
Window — BK7 High Grade (WB12) — WB12-012
Model WB12-012. Ø12.5 × 6; UV–NIR per BK7 transmission; BK7 grade A; Plano window.
Quote on request quote on request
Windows · Cookbook p. 27
Window — BK7 High Grade (WB12) — WB12-020
Model WB12-020. Ø20 × 6; UV–NIR per BK7 transmission; BK7 grade A; Plano window.
Quote on request quote on request
Windows · Cookbook p. 27
Window — BK7 High Grade (WB12) — WB12-025
Model WB12-025. Ø25 × 6; UV–NIR per BK7 transmission; BK7 grade A; Plano window.
Quote on request quote on request
Windows · Cookbook p. 27
Window — BK7 High Grade (WB12) — WB12-038
Model WB12-038. Ø38 × 10; UV–NIR per BK7 transmission; BK7 grade A; Plano window.
Quote on request quote on request
Windows · Cookbook p. 27
Window — BK7 High Grade (WB12) — WB12-050
Model WB12-050. Ø50 × 10; UV–NIR per BK7 transmission; BK7 grade A; Plano window.
Quote on request quote on request
Windows · Cookbook p. 27
Window — UV Fused Silica High Grade (WF22) — WF22-005
Model WF22-005. Ø5 × 2; UV grade fused silica transmission; UV fused silica; Plano window.
Quote on request quote on request
Windows · Cookbook p. 27
Window — UV Fused Silica High Grade (WF22) — WF22-010
Model WF22-010. Ø10 × 2; UV grade fused silica transmission; UV fused silica; Plano window.
Quote on request quote on request
Windows · Cookbook p. 27
Window — UV Fused Silica High Grade (WF22) — WF22-012
Model WF22-012. Ø12.5 × 6; UV grade fused silica transmission; UV fused silica; Plano window.
Quote on request quote on request
Windows · Cookbook p. 27
Window — UV Fused Silica High Grade (WF22) — WF22-020
Model WF22-020. Ø20 × 6; UV grade fused silica transmission; UV fused silica; Plano window.
Quote on request quote on request
Windows · Cookbook p. 27
Window — UV Fused Silica High Grade (WF22) — WF22-025
Model WF22-025. Ø25 × 6; UV grade fused silica transmission; UV fused silica; Plano window.
Quote on request quote on request
Windows · Cookbook p. 27
Window — UV Fused Silica High Grade (WF22) — WF22-038
Model WF22-038. Ø38 × 10; UV grade fused silica transmission; UV fused silica; Plano window.
Quote on request quote on request
Windows · Cookbook p. 27
Window — UV Fused Silica High Grade (WF22) — WF22-050
Model WF22-050. Ø50 × 10; UV grade fused silica transmission; UV fused silica; Plano window.
Quote on request quote on request
Mirrors · Cookbook p. 27
Mirror — BK7 Standard, protected Al (MB11) — MB11-010
Model MB11-010. Ø10 × 2; Visible–IR per protected Al; BK7 grade A; First-surface mirror, rear fine ground.
Quote on request quote on request
Mirrors · Cookbook p. 27
Mirror — BK7 Standard, protected Al (MB11) — MB11-012
Model MB11-012. Ø12.5 × 2; Visible–IR per protected Al; BK7 grade A; First-surface mirror, rear fine ground.
Quote on request quote on request
Mirrors · Cookbook p. 27
Mirror — BK7 Standard, protected Al (MB11) — MB11-020
Model MB11-020. Ø20 × 2; Visible–IR per protected Al; BK7 grade A; First-surface mirror, rear fine ground.
Quote on request quote on request
Mirrors · Cookbook p. 27
Mirror — BK7 Standard, protected Al (MB11) — MB11-025
Model MB11-025. Ø25 × 2; Visible–IR per protected Al; BK7 grade A; First-surface mirror, rear fine ground.
Quote on request quote on request
Mirrors · Cookbook p. 27
Mirror — BK7 Standard, protected Al (MB11) — MB11-038
Model MB11-038. Ø38 × 4; Visible–IR per protected Al; BK7 grade A; First-surface mirror, rear fine ground.
Quote on request quote on request
Mirrors · Cookbook p. 27
Mirror — BK7 Standard, protected Al (MB11) — MB11-050
Model MB11-050. Ø50 × 4; Visible–IR per protected Al; BK7 grade A; First-surface mirror, rear fine ground.
Quote on request quote on request
Mirrors · Cookbook p. 27
Mirror — BK7 High Grade, protected Al (MB12) — MB12-010
Model MB12-010. Ø10 × 2; Visible–IR per protected Al; BK7 grade A or fused silica; First-surface mirror, rear fine ground.
Quote on request quote on request
Mirrors · Cookbook p. 27
Mirror — BK7 High Grade, protected Al (MB12) — MB12-012
Model MB12-012. Ø12.5 × 6; Visible–IR per protected Al; BK7 grade A or fused silica; First-surface mirror, rear fine ground.
Quote on request quote on request
Mirrors · Cookbook p. 27
Mirror — BK7 High Grade, protected Al (MB12) — MB12-020
Model MB12-020. Ø20 × 6; Visible–IR per protected Al; BK7 grade A or fused silica; First-surface mirror, rear fine ground.
Quote on request quote on request
Mirrors · Cookbook p. 27
Mirror — BK7 High Grade, protected Al (MB12) — MB12-025
Model MB12-025. Ø25 × 6; Visible–IR per protected Al; BK7 grade A or fused silica; First-surface mirror, rear fine ground.
Quote on request quote on request
Mirrors · Cookbook p. 27
Mirror — BK7 High Grade, protected Al (MB12) — MB12-038
Model MB12-038. Ø38 × 10; Visible–IR per protected Al; BK7 grade A or fused silica; First-surface mirror, rear fine ground.
Quote on request quote on request
Mirrors · Cookbook p. 27
Mirror — BK7 High Grade, protected Al (MB12) — MB12-050
Model MB12-050. Ø50 × 10; Visible–IR per protected Al; BK7 grade A or fused silica; First-surface mirror, rear fine ground.
Quote on request quote on request
Mirrors · Cookbook p. 27
Mirror — UV Fused Silica High Grade, protected Al (MF22) — MF22-010
Model MF22-010. Ø10 × 2; Visible–IR per protected Al; UV fused silica; First-surface mirror, rear fine ground.
Quote on request quote on request
Mirrors · Cookbook p. 27
Mirror — UV Fused Silica High Grade, protected Al (MF22) — MF22-012
Model MF22-012. Ø12.5 × 6; Visible–IR per protected Al; UV fused silica; First-surface mirror, rear fine ground.
Quote on request quote on request
Mirrors · Cookbook p. 27
Mirror — UV Fused Silica High Grade, protected Al (MF22) — MF22-020
Model MF22-020. Ø20 × 6; Visible–IR per protected Al; UV fused silica; First-surface mirror, rear fine ground.
Quote on request quote on request
Mirrors · Cookbook p. 27
Mirror — UV Fused Silica High Grade, protected Al (MF22) — MF22-025
Model MF22-025. Ø25 × 6; Visible–IR per protected Al; UV fused silica; First-surface mirror, rear fine ground.
Quote on request quote on request
Mirrors · Cookbook p. 27
Mirror — UV Fused Silica High Grade, protected Al (MF22) — MF22-038
Model MF22-038. Ø38 × 10; Visible–IR per protected Al; UV fused silica; First-surface mirror, rear fine ground.
Quote on request quote on request
Mirrors · Cookbook p. 27
Mirror — UV Fused Silica High Grade, protected Al (MF22) — MF22-050
Model MF22-050. Ø50 × 10; Visible–IR per protected Al; UV fused silica; First-surface mirror, rear fine ground.
Quote on request quote on request
Lenses · Cookbook p. 28
Plano Convex Cylindrical (CYX15) — CYX15-010-012
Model CYX15-010-012. H×L 10 × 10; EFL +12.7 mm; BFL 9.862; BK7 or equivalent; Cylindrical singlet.
Quote on request quote on request
Lenses · Cookbook p. 28
Plano Convex Cylindrical (CYX15) — CYX15-010-020
Model CYX15-010-020. H×L 10 × 10; EFL +20 mm; BFL 17.835; BK7 or equivalent; Cylindrical singlet.
Quote on request quote on request
Lenses · Cookbook p. 28
Plano Convex Cylindrical (CYX15) — CYX15-010-025
Model CYX15-010-025. H×L 10 × 10; EFL +25 mm; BFL 23.016; BK7 or equivalent; Cylindrical singlet.
Quote on request quote on request
Lenses · Cookbook p. 28
Plano Convex Cylindrical (CYX15) — CYX15-020-012
Model CYX15-020-012. H×L 10 × 20; EFL +12.7 mm; BFL 9.862; BK7 or equivalent; Cylindrical singlet.
Quote on request quote on request
Lenses · Cookbook p. 28
Plano Convex Cylindrical (CYX15) — CYX15-020-020
Model CYX15-020-020. H×L 10 × 20; EFL +20 mm; BFL 17.835; BK7 or equivalent; Cylindrical singlet.
Quote on request quote on request
Lenses · Cookbook p. 28
Plano Convex Cylindrical (CYX15) — CYX15-020-025
Model CYX15-020-025. H×L 10 × 20; EFL +25 mm; BFL 23.016; BK7 or equivalent; Cylindrical singlet.
Quote on request quote on request
Lenses · Cookbook p. 28
Plano Convex Cylindrical (CYX15) — CYX15-040-050
Model CYX15-040-050. H×L 20 × 40; EFL +50 mm; BFL 47.352; BK7 or equivalent; Cylindrical singlet.
Quote on request quote on request
Lenses · Cookbook p. 28
Plano Convex Cylindrical (CYX15) — CYX15-040-075
Model CYX15-040-075. H×L 20 × 40; EFL +75 mm; BFL 72.822; BK7 or equivalent; Cylindrical singlet.
Quote on request quote on request
Lenses · Cookbook p. 28
Plano Convex Cylindrical (CYX15) — CYX15-040-100
Model CYX15-040-100. H×L 20 × 40; EFL +100 mm; BFL 97.381; BK7 or equivalent; Cylindrical singlet.
Quote on request quote on request
Lenses · Cookbook p. 28
Plano Convex Cylindrical (CYX15) — CYX15-040-150
Model CYX15-040-150. H×L 20 × 40; EFL +150 mm; BFL 147.6; BK7 or equivalent; Cylindrical singlet.
Quote on request quote on request
Lenses · Cookbook p. 28
Plano Concave Cylindrical (CYV16) — CYV16-010-012
Model CYV16-010-012. H×L 10 × 10; EFL -12.7 mm; BFL -14.023; BK7 or equivalent; Cylindrical singlet.
Quote on request quote on request
Lenses · Cookbook p. 28
Plano Concave Cylindrical (CYV16) — CYV16-010-025
Model CYV16-010-025. H×L 10 × 10; EFL -25 mm; BFL -26.320; BK7 or equivalent; Cylindrical singlet.
Quote on request quote on request
Lenses · Cookbook p. 28
Plano Concave Cylindrical (CYV16) — CYV16-020-012
Model CYV16-020-012. H×L 10 × 20; EFL -12.7 mm; BFL -14.030; BK7 or equivalent; Cylindrical singlet.
Quote on request quote on request
Lenses · Cookbook p. 28
Plano Concave Cylindrical (CYV16) — CYV16-020-025
Model CYV16-020-025. H×L 10 × 20; EFL -25 mm; BFL -26.320; BK7 or equivalent; Cylindrical singlet.
Quote on request quote on request
Lenses · Cookbook p. 28
Plano Concave Cylindrical (CYV16) — CYV16-040-050
Model CYV16-040-050. H×L 20 × 40; EFL -50 mm; BFL -51.981; BK7 or equivalent; Cylindrical singlet.
Quote on request quote on request
Lenses · Cookbook p. 28
Plano Concave Cylindrical (CYV16) — CYV16-040-075
Model CYV16-040-075. H×L 20 × 40; EFL -75 mm; BFL -76.983; BK7 or equivalent; Cylindrical singlet.
Quote on request quote on request
Lenses · Cookbook p. 28
Plano Concave Cylindrical (CYV16) — CYV16-040-100
Model CYV16-040-100. H×L 20 × 40; EFL -100 mm; BFL -101.325; BK7 or equivalent; Cylindrical singlet.
Quote on request quote on request
Lenses · Cookbook p. 28
Plano Concave Cylindrical (CYV16) — CYV16-040-150
Model CYV16-040-150. H×L 20 × 40; EFL -150 mm; BFL -151.987; BK7 or equivalent; Cylindrical singlet.
Quote on request quote on request
Lenses · Cookbook p. 28
Plano Concave Cylindrical (CYV16) — CYV16-040-250
Model CYV16-040-250. H×L 20 × 40; EFL -250 mm; BFL -251.974; BK7 or equivalent; Cylindrical singlet.
Quote on request quote on request
Lenses · Cookbook p. 28
Plano Concave Cylindrical (CYV16) — CYV16-040-500
Model CYV16-040-500. H×L 20 × 40; EFL -500 mm; BFL -501.969; BK7 or equivalent; Cylindrical singlet.
Quote on request quote on request
Lenses · Cookbook p. 29
Ball Lens — BK7 (LB1) — LB1-001
Model LB1-001. Ø1.0; —; BK7 grade A or equivalent; Sphere.
Quote on request quote on request
Lenses · Cookbook p. 29
Ball Lens — BK7 (LB1) — LB1-002
Model LB1-002. Ø2.0; —; BK7 grade A or equivalent; Sphere.
Quote on request quote on request
Lenses · Cookbook p. 29
Ball Lens — BK7 (LB1) — LB1-003
Model LB1-003. Ø3.0; —; BK7 grade A or equivalent; Sphere.
Quote on request quote on request
Lenses · Cookbook p. 29
Ball Lens — BK7 (LB1) — LB1-004
Model LB1-004. Ø4.0; —; BK7 grade A or equivalent; Sphere.
Quote on request quote on request
Lenses · Cookbook p. 29
Ball Lens — BK7 (LB1) — LB1-005
Model LB1-005. Ø5.0; —; BK7 grade A or equivalent; Sphere.
Quote on request quote on request
Lenses · Cookbook p. 29
Ball Lens — UV Fused Silica (LB2) — LB2-001
Model LB2-001. Ø1.0; —; UV fused silica; Sphere.
Quote on request quote on request
Lenses · Cookbook p. 29
Ball Lens — UV Fused Silica (LB2) — LB2-002
Model LB2-002. Ø2.0; —; UV fused silica; Sphere.
Quote on request quote on request
Lenses · Cookbook p. 29
Ball Lens — UV Fused Silica (LB2) — LB2-003
Model LB2-003. Ø3.0; —; UV fused silica; Sphere.
Quote on request quote on request
Lenses · Cookbook p. 29
Ball Lens — UV Fused Silica (LB2) — LB2-004
Model LB2-004. Ø4.0; —; UV fused silica; Sphere.
Quote on request quote on request
Lenses · Cookbook p. 29
Ball Lens — UV Fused Silica (LB2) — LB2-005
Model LB2-005. Ø5.0; —; UV fused silica; Sphere.
Quote on request quote on request
Lenses · Cookbook p. 29
Ball Lens — UV Fused Silica (LB2) — LB2-006
Model LB2-006. Ø6.0; —; UV fused silica; Sphere.
Quote on request quote on request
Lenses · Cookbook p. 29
Ball Lens — UV Fused Silica (LB2) — LB2-008
Model LB2-008. Ø8.0; —; UV fused silica; Sphere.
Quote on request quote on request
Lenses · Cookbook p. 29
Ball Lens — UV Fused Silica (LB2) — LB2-010
Model LB2-010. Ø10.0; —; UV fused silica; Sphere.
Quote on request quote on request
Lenses · Cookbook p. 29
Drum Lens (LD1) — LD1-020-025
Model LD1-020-025. Ø2.0 × L2.5; —; BK7 grade A optical glass; Drum lens.
Quote on request quote on request
Lenses · Cookbook p. 29
Drum Lens (LD1) — LD1-020-030
Model LD1-020-030. Ø2.0 × L3.0; —; BK7 grade A optical glass; Drum lens.
Quote on request quote on request
Lenses · Cookbook p. 29
Drum Lens (LD1) — LD1-020-040
Model LD1-020-040. Ø3.0 × L4.0; —; BK7 grade A optical glass; Drum lens.
Quote on request quote on request
Lenses · Cookbook p. 29
Drum Lens (LD1) — LD1-020-050
Model LD1-020-050. Ø4.0 × L5.0; —; BK7 grade A optical glass; Drum lens.
Quote on request quote on request
Lenses · Cookbook p. 29
Drum Lens — Fused Silica (LD2) — LD2-XXX-YYY
Model LD2-XXX-YYY. Per model; —; Fused silica; Drum lens.
Quote on request quote on request
Lenses · Cookbook p. 30
Plano Concave (LNCV) — LNCV001
Model LNCV001. Ø6 × CT 2.5; Design λ 632.8 nm; EFL -18 mm; R1 -9.26; BFL -19.32; BK7 grade A fine anneal (or K9); Plano concave.
Quote on request quote on request
Lenses · Cookbook p. 30
Plano Concave (LNCV) — LNCV002
Model LNCV002. Ø6 × CT 2.37; Design λ 632.8 nm; EFL -24 mm; R1 -12.35; BFL -25.32; BK7 grade A fine anneal (or K9); Plano concave.
Quote on request quote on request
Lenses · Cookbook p. 30
Plano Concave (LNCV) — LNCV003
Model LNCV003. Ø12.7 × CT 4.68; Design λ 632.8 nm; EFL -25 mm; R1 -12.87; BFL -26.98; BK7 grade A fine anneal (or K9); Plano concave.
Quote on request quote on request
Lenses · Cookbook p. 30
Plano Concave (LNCV) — LNCV004
Model LNCV004. Ø12.7 × CT 4.37; Design λ 632.8 nm; EFL -30 mm; R1 -15.44; BFL -31.98; BK7 grade A fine anneal (or K9); Plano concave.
Quote on request quote on request
Lenses · Cookbook p. 30
Plano Concave (LNCV) — LNCV005
Model LNCV005. Ø12.7 × CT 4.3; Design λ 632.8 nm; EFL -50 mm; R1 -25.73; BFL -52.31; BK7 grade A fine anneal (or K9); Plano concave.
Quote on request quote on request
Lenses · Cookbook p. 30
Plano Concave (LNCV) — LNCV006
Model LNCV006. Ø25.4 × CT 6.9; Design λ 632.8 nm; EFL -50 mm; R1 -25.7; BFL -52.3; BK7 grade A fine anneal (or K9); Plano concave.
Quote on request quote on request
Lenses · Cookbook p. 30
Plano Concave (LNCV) — LNCV007
Model LNCV007. Ø25.4 × CT 5.65; Design λ 632.8 nm; EFL -75 mm; R1 -38.6; BFL -77.31; BK7 grade A fine anneal (or K9); Plano concave.
Quote on request quote on request
Lenses · Cookbook p. 30
Plano Concave (LNCV) — LNCV008
Model LNCV008. Ø25.4 × CT 5.59; Design λ 632.8 nm; EFL -100 mm; R1 -51.46; BFL -102.64; BK7 grade A fine anneal (or K9); Plano concave.
Quote on request quote on request
Lenses · Cookbook p. 30
Plano Concave (LNCV) — LNCV009
Model LNCV009. Ø50.8 × CT 13.04; Design λ 632.8 nm; EFL -75 mm; R1 -38.6; BFL -77.31; BK7 grade A fine anneal (or K9); Plano concave.
Quote on request quote on request
Lenses · Cookbook p. 30
Plano Concave (LNCV) — LNCV010
Model LNCV010. Ø50.8 × CT 10.71; Design λ 632.8 nm; EFL -100 mm; R1 -51.46; BFL -102.64; BK7 grade A fine anneal (or K9); Plano concave.
Quote on request quote on request
Lenses · Cookbook p. 30
Plano Concave (LNCV) — LNCV011
Model LNCV011. Ø50.8 × CT 8.3; Design λ 632.8 nm; EFL -150 mm; R1 -77.19; BFL as printed; BK7 grade A fine anneal (or K9); Plano concave.
Quote on request quote on request
Lenses · Cookbook p. 31
Plano Convex (LNCX) — LNCX001
Model LNCX001. Ø6 × CT 1.5; Design λ 632.8 nm; EFL +10 mm; R1 5.15; BFL 8.37; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 31
Plano Convex (LNCX) — LNCX002
Model LNCX002. Ø6 × CT 1.5; Design λ 632.8 nm; EFL +12 mm; R1 6.18; BFL 10.5; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 31
Plano Convex (LNCX) — LNCX003
Model LNCX003. Ø6 × CT 1.5; Design λ 632.8 nm; EFL +15 mm; R1 7.73; BFL 13.61; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 31
Plano Convex (LNCX) — LNCX004
Model LNCX004. Ø6 × CT 1.5; Design λ 632.8 nm; EFL +30 mm; R1 15.54; BFL 28.82; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 31
Plano Convex (LNCX) — LNCX005
Model LNCX005. Ø12.7 × CT 1.8; Design λ 632.8 nm; EFL +15 mm; R1 7.73; BFL 11.62; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 31
Plano Convex (LNCX) — LNCX006
Model LNCX006. Ø12.7 × CT 1.8; Design λ 632.8 nm; EFL +20 mm; R1 10.3; BFL 17.37; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 31
Plano Convex (LNCX) — LNCX007
Model LNCX007. Ø12.7 × CT 1.8; Design λ 632.8 nm; EFL +25 mm; R1 12.88; BFL 22.71; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 31
Plano Convex (LNCX) — LNCX008
Model LNCX008. Ø12.7 × CT 1.8; Design λ 632.8 nm; EFL +30 mm; R1 15.45; BFL 27.91; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 31
Plano Convex (LNCX) — LNCX009
Model LNCX009. Ø12.7 × CT 1.8; Design λ 632.8 nm; EFL +40 mm; R1 20.6; BFL 38.15; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 31
Plano Convex (LNCX) — LNCX010
Model LNCX010. Ø12.7 × CT 1.8; Design λ 632.8 nm; EFL +50 mm; R1 25.75; BFL 48.29; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 31
Plano Convex (LNCX) — LNCX011
Model LNCX011. Ø12.7 × CT 1.8; Design λ 632.8 nm; EFL +100 mm; R1 51.51; BFL 98.55; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 31
Plano Convex (LNCX) — LNCX012
Model LNCX012. Ø25.4 × CT 1.8; Design λ 632.8 nm; EFL +25.4 mm; R1 13.08; BFL 17.65; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 31
Plano Convex (LNCX) — LNCX013
Model LNCX013. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +30 mm; R1 15.45; BFL 24.29; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 31
Plano Convex (LNCX) — LNCX014
Model LNCX014. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +35 mm; R1 18.03; BFL 30.23; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 31
Plano Convex (LNCX) — LNCX015
Model LNCX015. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +40 mm; R1 20.6; BFL 25.79; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 31
Plano Convex (LNCX) — LNCX016
Model LNCX016. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +50 mm; R1 25.75; BFL 46.47; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 31
Plano Convex (LNCX) — LNCX017
Model LNCX017. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +60 mm; R1 30.9; BFL 56.88; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 31
Plano Convex (LNCX) — LNCX018
Model LNCX018. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +75 mm; R1 38.63; BFL 72.26; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 31
Plano Convex (LNCX) — LNCX019
Model LNCX019. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +100 mm; R1 51.51; BFL 97.63; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 31
Plano Convex (LNCX) — LNCX020
Model LNCX020. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +125 mm; R1 64.39; BFL 122.85; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 31
Plano Convex (LNCX) — LNCX021
Model LNCX021. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +150 mm; R1 77.26; BFL 147.99; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 31
Plano Convex (LNCX) — LNCX022
Model LNCX022. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +175 mm; R1 90.14; BFL 173.09; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 31
Plano Convex (LNCX) — LNCX023
Model LNCX023. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +200 mm; R1 103.02; BFL 198.16; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 31
Plano Convex (LNCX) — LNCX024
Model LNCX024. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +250 mm; R1 128.77; BFL 248.27; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 32
Plano Convex (LNCX) — LNCX025
Model LNCX025. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +300 mm; R1 154.52; BFL 298.33; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 32
Plano Convex (LNCX) — LNCX026
Model LNCX026. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +400 mm; R1 206.03; BFL 398.42; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 32
Plano Convex (LNCX) — LNCX027
Model LNCX027. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +500 mm; R1 257.54; BFL 498.47; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 32
Plano Convex (LNCX) — LNCX028
Model LNCX028. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +750 mm; R1 386.31; BFL 748.54; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 32
Plano Convex (LNCX) — LNCX029
Model LNCX029. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +1000 mm; R1 515.08; BFL 998.58; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 32
Plano Convex (LNCX) — LNCX030
Model LNCX030. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +60 mm; R1 30.9; BFL 49.24; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 32
Plano Convex (LNCX) — LNCX031
Model LNCX031. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +75 mm; R1 38.63; BFL 66.73; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 32
Plano Convex (LNCX) — LNCX032
Model LNCX032. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +100 mm; R1 51.51; BFL 93.6; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 32
Plano Convex (LNCX) — LNCX033
Model LNCX033. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +125 mm; R1 64.39; BFL 119.57; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 32
Plano Convex (LNCX) — LNCX034
Model LNCX034. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +150 mm; R1 77.26; BFL 145.19; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 32
Plano Convex (LNCX) — LNCX035
Model LNCX035. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +175 mm; R1 90.14; BFL 170.61; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 32
Plano Convex (LNCX) — LNCX036
Model LNCX036. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +200 mm; R1 103.02; BFL 195.92; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 32
Plano Convex (LNCX) — LNCX037
Model LNCX037. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +250 mm; R1 128.77; BFL 246.35; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 32
Plano Convex (LNCX) — LNCX038
Model LNCX038. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +300 mm; R1 154.52; BFL 296.63; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 32
Plano Convex (LNCX) — LNCX039
Model LNCX039. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +400 mm; R1 206.03; BFL 396.98; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 32
Plano Convex (LNCX) — LNCX040
Model LNCX040. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +500 mm; R1 257.54; BFL 497.19; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 32
Plano Convex (LNCX) — LNCX041
Model LNCX041. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +750 mm; R1 386.31; BFL 747.47; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 32
Plano Convex (LNCX) — LNCX042
Model LNCX042. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +1000 mm; R1 515.08; BFL 997.61; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 32
Plano Convex (LNCX) — LNCX043
Model LNCX043. Ø75 × CT 3; Design λ 632.8 nm; EFL +85 mm; R1 43.78; BFL 69.04; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 32
Plano Convex (LNCX) — LNCX044
Model LNCX044. Ø75 × CT 3; Design λ 632.8 nm; EFL +100 mm; R1 51.51; BFL 87.33; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 32
Plano Convex (LNCX) — LNCX045
Model LNCX045. Ø75 × CT 3; Design λ 632.8 nm; EFL +150 mm; R1 77.26; BFL 141.61; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 32
Plano Convex (LNCX) — LNCX046
Model LNCX046. Ø75 × CT 3; Design λ 632.8 nm; EFL +200 mm; R1 103.02; BFL 193.35; BK7 grade A fine anneal (or K9); Plano convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX001
Model LNBX001. Ø6 × CT 1.5; Design λ 632.8 nm; EFL +10 mm; R1/R2 9.87; BFL 9.16; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX002
Model LNBX002. Ø6 × CT 1.5; Design λ 632.8 nm; EFL +12 mm; R1/R2 11.97; BFL 11.73; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX003
Model LNBX003. Ø6 × CT 1.5; Design λ 632.8 nm; EFL +15 mm; R1/R2 15.09; BFL 14.29; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX004
Model LNBX004. Ø6 × CT 1.5; Design λ 632.8 nm; EFL +30 mm; R1/R2 30.6; BFL 29.4; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX005
Model LNBX005. Ø9 × CT 1.8; Design λ 632.8 nm; EFL +12 mm; R1/R2 11.72; BFL 10.75; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX006
Model LNBX006. Ø9 × CT 1.8; Design λ 632.8 nm; EFL +20 mm; R1/R2 20.11; BFL 19.05; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX007
Model LNBX007. Ø12.7 × CT 1.8; Design λ 632.8 nm; EFL +15 mm; R1/R2 14.61; BFL 13.36; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX008
Model LNBX008. Ø12.7 × CT 1.8; Design λ 632.8 nm; EFL +20 mm; R1/R2 19.92; BFL 18.68; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX009
Model LNBX009. Ø12.7 × CT 1.8; Design λ 632.8 nm; EFL +25 mm; R1/R2 25.16; BFL 23.84; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX010
Model LNBX010. Ø12.7 × CT 1.8; Design λ 632.8 nm; EFL +30 mm; R1/R2 30.36; BFL 28.95; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX011
Model LNBX011. Ø12.7 × CT 1.8; Design λ 632.8 nm; EFL +40 mm; R1/R2 40.72; BFL 39.07; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX012
Model LNBX012. Ø12.7 × CT 1.8; Design λ 632.8 nm; EFL +50 mm; R1/R2 51.06; BFL 49.14; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX013
Model LNBX013. Ø12.7 × CT 1.8; Design λ 632.8 nm; EFL +100 mm; R1/R2 102.64; BFL 99.27; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX014
Model LNBX014. Ø25.4 × CT 1.8; Design λ 632.8 nm; EFL +25.4 mm; R1/R2 24.54; BFL 22.24; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX015
Model LNBX015. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +30 mm; R1/R2 29.53; BFL 27.33; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX016
Model LNBX016. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +35 mm; R1/R2 34.86; BFL 37.68; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX017
Model LNBX017. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +40 mm; R1/R2 40.14; BFL 37.93; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX018
Model LNBX018. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +50 mm; R1/R2 50.6; BFL 48.24; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX019
Model LNBX019. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +60 mm; R1/R2 61.01; BFL 58.44; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX020
Model LNBX020. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +75 mm; R1/R2 76.56; BFL 73.62; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX021
Model LNBX021. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +100 mm; R1/R2 102.4; BFL 98.81; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX022
Model LNBX022. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +125 mm; R1/R2 128.21; BFL 123.92; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX023
Model LNBX023. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +150 mm; R1/R2 154; BFL 148.99; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX024
Model LNBX024. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +175 mm; R1/R2 179.78; BFL 174.04; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX025
Model LNBX025. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +200 mm; R1/R2 205.56; BFL 199.06; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX026
Model LNBX026. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +250 mm; R1/R2 257.09; BFL 249.13; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX027
Model LNBX027. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +300 mm; R1/R2 308.62; BFL 299.17; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX028
Model LNBX028. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +400 mm; R1/R2 411.66; BFL 399.21; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX029
Model LNBX029. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +500 mm; R1/R2 514.69; BFL 499.34; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX030
Model LNBX030. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +750 mm; R1/R2 772.25; BFL 749.27; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX031
Model LNBX031. Ø25.4 × CT 2; Design λ 632.8 nm; EFL +1000 mm; R1/R2 1029.8; BFL 999.29; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX032
Model LNBX032. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +60 mm; R1/R2 59.25; BFL 55.03; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX033
Model LNBX033. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +75 mm; R1/R2 75.19; BFL 70.99; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX034
Model LNBX034. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +100 mm; R1/R2 101.38; BFL 96.82; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX035
Model LNBX035. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +125 mm; R1/R2 127.38; BFL 122.29; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX036
Model LNBX036. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +150 mm; R1/R2 153.28; BFL 147.59; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX037
Model LNBX037. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +175 mm; R1/R2 139.15; BFL 172.8; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX038
Model LNBX038. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +200 mm; R1/R2 204.98; BFL 197.96; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX039
Model LNBX039. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +250 mm; R1/R2 256.6; BFL 248.17; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX040
Model LNBX040. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +300 mm; R1/R2 308.16; BFL 298.31; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX041
Model LNBX041. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +400 mm; R1/R2 411.29; BFL 398.49; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX042
Model LNBX042. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +500 mm; R1/R2 514.36; BFL 498.59; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX043
Model LNBX043. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +750 mm; R1/R2 771.97; BFL 748.73; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 33
Bi Convex (LNBX) — LNBX044
Model LNBX044. Ø50.8 × CT 3; Design λ 632.8 nm; EFL +1000 mm; R1/R2 1029.55; BFL 998.8; BK7 grade A fine anneal (or K9); Bi-convex.
Quote on request quote on request
Lenses · Cookbook p. 34
Biconvex Mini Lens (LMBX) — LMBX001
Model LMBX001. Ø3.0 × Tc 2.0; FL +4.5 mm; Te 1.5; BK7; Bi-convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Biconvex Mini Lens (LMBX) — LMBX002
Model LMBX002. Ø3.0 × Tc 1.8; FL +6.0 mm; Te 1.4; BK7; Bi-convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Biconvex Mini Lens (LMBX) — LMBX003
Model LMBX003. Ø3.0 × Tc 1.6; FL +9.0 mm; Te 1.4; BK7; Bi-convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Biconvex Mini Lens (LMBX) — LMBX004
Model LMBX004. Ø5.0 × Tc 3.0; FL +4.5 mm; Te 1.3; BK7; Bi-convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Biconvex Mini Lens (LMBX) — LMBX005
Model LMBX005. Ø5.0 × Tc 3.0; FL +7.0 mm; Te 2.0; BK7; Bi-convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Biconvex Mini Lens (LMBX) — LMBX006
Model LMBX006. Ø5.0 × Tc 2.6; FL +10.0 mm; Te 2.0; BK7; Bi-convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX001
Model LMPX001. Ø1.0 × Tc 0.50; FL +0.6 mm; Te 0.39; LaSFN9; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX002
Model LMPX002. Ø1.5 × Tc 0.80; FL +1.0 mm; Te 0.30; LaSFN9; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX003
Model LMPX003. Ø1.5 × Tc 0.80; FL +1.5 mm; Te 0.56; LaSFN9; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX004
Model LMPX004. Ø1.5 × Tc 0.50; FL +29.0 mm; Te 0.46; BK7; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX005
Model LMPX005. Ø2.0 × Tc 0.80; FL +1.5 mm; Te 0.32; LaSFN9; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX006
Model LMPX006. Ø2.0 × Tc 0.80; FL +2.0 mm; Te 0.48; LaSFN9; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX007
Model LMPX007. Ø2.5 × Tc 0.99; FL +1.6 mm; Te 0.17; LaSFN9; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX008
Model LMPX008. Ø2.5 × Tc 0.80; FL +2.0 mm; Te 0.25; LaSFN9; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX009
Model LMPX009. Ø2.5 × Tc 0.80; FL +2.5 mm; Te 0.39; LaSFN9; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX010
Model LMPX010. Ø2.5 × Tc 0.80; FL +3.0 mm; Te 0.48; LaSFN9; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX011
Model LMPX011. Ø3.0 × Tc 2.00; FL +3.0 mm; Te 1.46; SF11; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX012
Model LMPX012. Ø3.0 × Tc 1.80; FL +4.5 mm; Te 1.47; SF6; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX013
Model LMPX013. Ø3.0 × Tc 1.80; FL +6.0 mm; Te 1.41; BK7; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX014
Model LMPX014. Ø3.0 × Tc 1.50; FL +9.0 mm; Te 1.25; BK7; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX015
Model LMPX015. Ø3.0 × Tc 1.08; FL +12.0 mm; Te 0.90; BK7; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX016
Model LMPX016. Ø3.0 × Tc 1.26; FL +15.0 mm; Te 1.12; BK7; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX017
Model LMPX017. Ø4.0 × Tc 1.70; FL +4.0 mm; Te 1.00; SF6; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX018
Model LMPX018. Ø4.0 × Tc 2.26; FL +6.0 mm; Te 1.53; BK7; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX019
Model LMPX019. Ø4.0 × Tc 1.39; FL +8.0 mm; Te 1.00; BaF10; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX020
Model LMPX020. Ø4.0 × Tc 1.64; FL +10.0 mm; Te 1.24; BK7; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX021
Model LMPX021. Ø4.0 × Tc 1.52; FL +12.0 mm; Te 1.19; BK7; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX022
Model LMPX022. Ø5.0 × Tc 1.87; FL +5.0 mm; Te 1.00; SF6; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX023
Model LMPX023. Ø5.0 × Tc 1.64; FL +10.0 mm; Te 1.00; BK7; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX024
Model LMPX024. Ø5.0 × Tc 1.77; FL +12.0 mm; Te 1.25; BK7; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Plano Convex Mini Lens (LMPX) — LMPX025
Model LMPX025. Ø5.0 × Tc 1.60; FL +15.0 mm; Te 1.19; BK7; Plano convex mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Mini Achromatic Lens, MgF2 coated (LMD) — LMD001
Model LMD001. Ø3.0 × Tc 2.50; FL +9.0 mm; Te 2.19; MgF2 coated; Achromatic mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Mini Achromatic Lens, MgF2 coated (LMD) — LMD002
Model LMD002. Ø3.0 × Tc 2.68; FL +12.0 mm; Te 2.45; MgF2 coated; Achromatic mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Mini Achromatic Lens, MgF2 coated (LMD) — LMD003
Model LMD003. Ø4.0 × Tc 2.53; FL +8.0 mm; Te 2.09; MgF2 coated; Achromatic mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Mini Achromatic Lens, MgF2 coated (LMD) — LMD004
Model LMD004. Ø5.0 × Tc 4.75; FL +7.5 mm; Te 3.98; MgF2 coated; Achromatic mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Mini Achromatic Lens, MgF2 coated (LMD) — LMD005
Model LMD005. Ø5.0 × Tc 2.75; FL +10.0 mm; Te 2.22; MgF2 coated; Achromatic mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Mini Achromatic Lens, MgF2 coated (LMD) — LMD006
Model LMD006. Ø5.0 × Tc 2.58; FL +15.0 mm; Te 2.23; MgF2 coated; Achromatic mini.
Quote on request quote on request
Lenses · Cookbook p. 34
Mini Achromatic Lens, MgF2 coated (LMD) — LMD007
Model LMD007. Ø5.0 × Tc 2.64; FL +20.0 mm; Te 2.37; MgF2 coated; Achromatic mini.
Quote on request quote on request
Assemblies & Custom · Cookbook p. 35
Optical Assemblies (multi-element, beam combiners, prism/window assemblies, mirror mounts, IR optics for military, reflector assemblies)
Model Custom / quote on request. Per drawing; —; In-house + worldwide partner network; Build-to-print assembly.
Quote on request quote on request
Assemblies & Custom · Cookbook p. 35
Large Optics (10" Dove prism, 2" beamsplitter, 12-sided scanner prism, optical flats up to 10")
Model Custom / quote on request. Per drawing; —; In-house fabrication; Build-to-print.
Quote on request quote on request
Mounting Rings · Cookbook p. 36
Waveplate Mounting Ring (0515) — 0515-0002
Model 0515-0002. Ø12.7, CA 8; —; High-grade aluminum; hard coat black anodize; fine metric thread; retainer with slots; Aluminum housing + retaining ring.
$25 each · catalog list; confirm current pricing
Mounting Rings · Cookbook p. 36
Waveplate Mounting Ring (0515) — 0515-0002-L
Model 0515-0002-L. Ø12.7, CA 8; —; High-grade aluminum; hard coat black anodize; fine metric thread; retainer with slots; Aluminum housing + retaining ring.
$25 each · catalog list; confirm current pricing
Mounting Rings · Cookbook p. 36
Waveplate Mounting Ring (0515) — 0515-0003
Model 0515-0003. Ø25.4, CA 8; —; High-grade aluminum; hard coat black anodize; fine metric thread; retainer with slots; Aluminum housing + retaining ring.
$35 each · catalog list; confirm current pricing
Mounting Rings · Cookbook p. 36
Waveplate Mounting Ring (0515) — 0515-0003-L
Model 0515-0003-L. Ø25.4, CA 8; —; High-grade aluminum; hard coat black anodize; fine metric thread; retainer with slots; Aluminum housing + retaining ring.
$35 each · catalog list; confirm current pricing
Mounting Rings · Cookbook p. 36
Waveplate Mounting Ring (0515) — 0515-0001
Model 0515-0001. Ø25.4, CA 15; —; High-grade aluminum; hard coat black anodize; fine metric thread; retainer with slots; Aluminum housing + retaining ring.
$40 each · catalog list; confirm current pricing
Mounting Rings · Cookbook p. 36
Waveplate Mounting Ring (0515) — 0515-0001-L
Model 0515-0001-L. Ø25.4, CA 15; —; High-grade aluminum; hard coat black anodize; fine metric thread; retainer with slots; Aluminum housing + retaining ring.
$40 each · catalog list; confirm current pricing
Mounting Rings · Cookbook p. 36
Waveplate Mounting Ring (0515) — 0515-0004
Model 0515-0004. Ø30, CA 23; —; High-grade aluminum; hard coat black anodize; fine metric thread; retainer with slots; Aluminum housing + retaining ring.
$44 each · catalog list; confirm current pricing
Mounting Rings · Cookbook p. 36
Waveplate Mounting Ring (0515) — 0515-0004-L
Model 0515-0004-L. Ø30, CA 23; —; High-grade aluminum; hard coat black anodize; fine metric thread; retainer with slots; Aluminum housing + retaining ring.
$44 each · catalog list; confirm current pricing
Mounting Rings · Cookbook p. 36
Waveplate Mounting Ring (0515) — 0515-0005
Model 0515-0005. Ø50.8, CA 34; —; High-grade aluminum; hard coat black anodize; fine metric thread; retainer with slots; Aluminum housing + retaining ring.
$50 each · catalog list; confirm current pricing
Mounting Rings · Cookbook p. 36
Waveplate Mounting Ring (0515) — 0515-0005-L
Model 0515-0005-L. Ø50.8, CA 34; —; High-grade aluminum; hard coat black anodize; fine metric thread; retainer with slots; Aluminum housing + retaining ring.
$50 each · catalog list; confirm current pricing
Mounting Rings · Cookbook p. 36
Waveplate Mounting Ring (0515) — 0515-0006
Model 0515-0006. Ø76.2, CA 46.8; —; High-grade aluminum; hard coat black anodize; fine metric thread; retainer with slots; Aluminum housing + retaining ring.
$65 each · catalog list; confirm current pricing
Mounting Rings · Cookbook p. 36
Waveplate Mounting Ring (0515) — 0515-0006-L
Model 0515-0006-L. Ø76.2, CA 46.8; —; High-grade aluminum; hard coat black anodize; fine metric thread; retainer with slots; Aluminum housing + retaining ring.
$65 each · catalog list; confirm current pricing
Nothing matches that filter. Try clearing it — or send us the spec: if it transmits, reflects, or splits light, we’ve probably made one like it.
